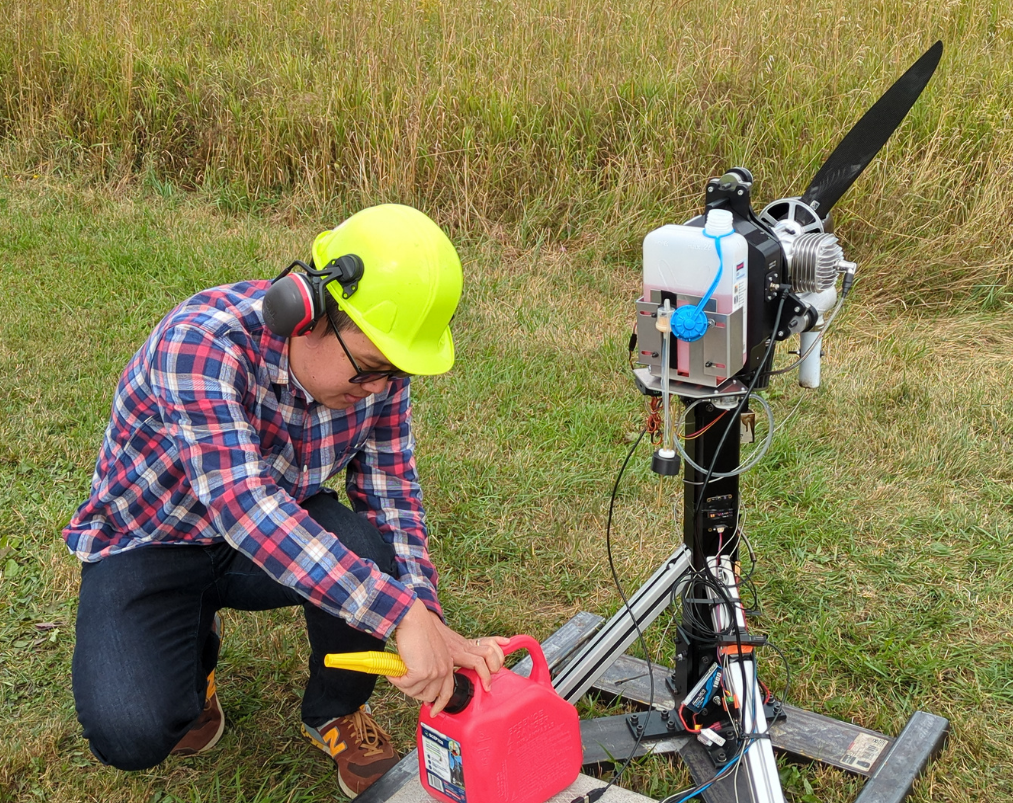

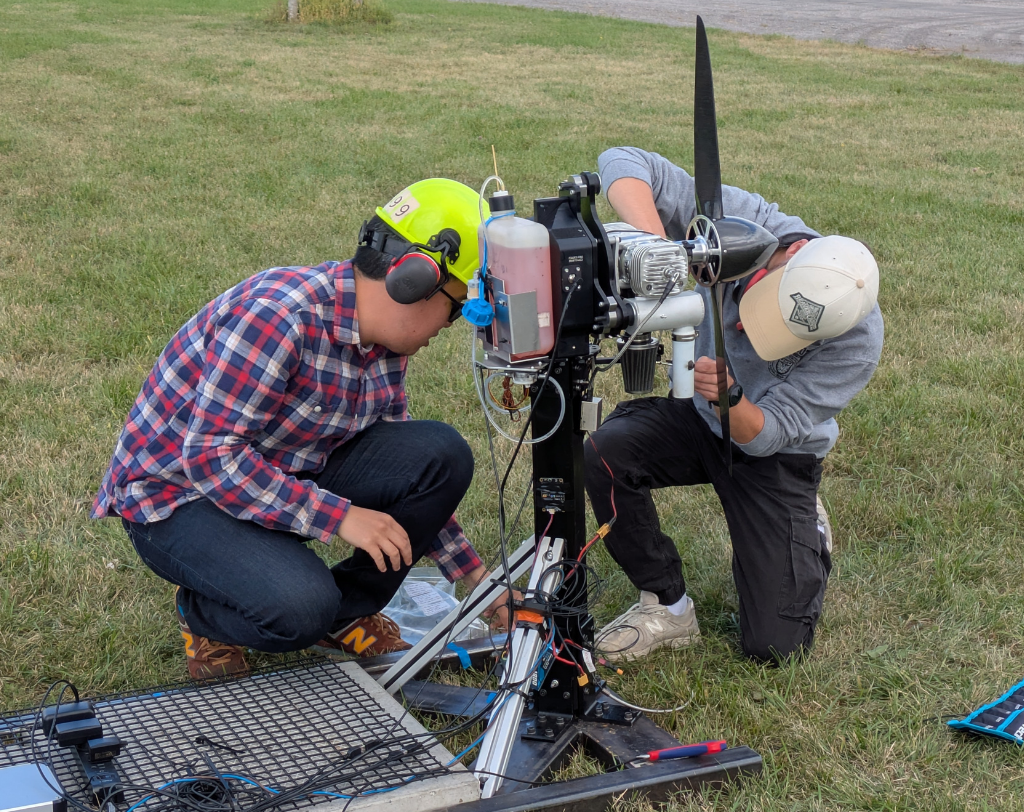

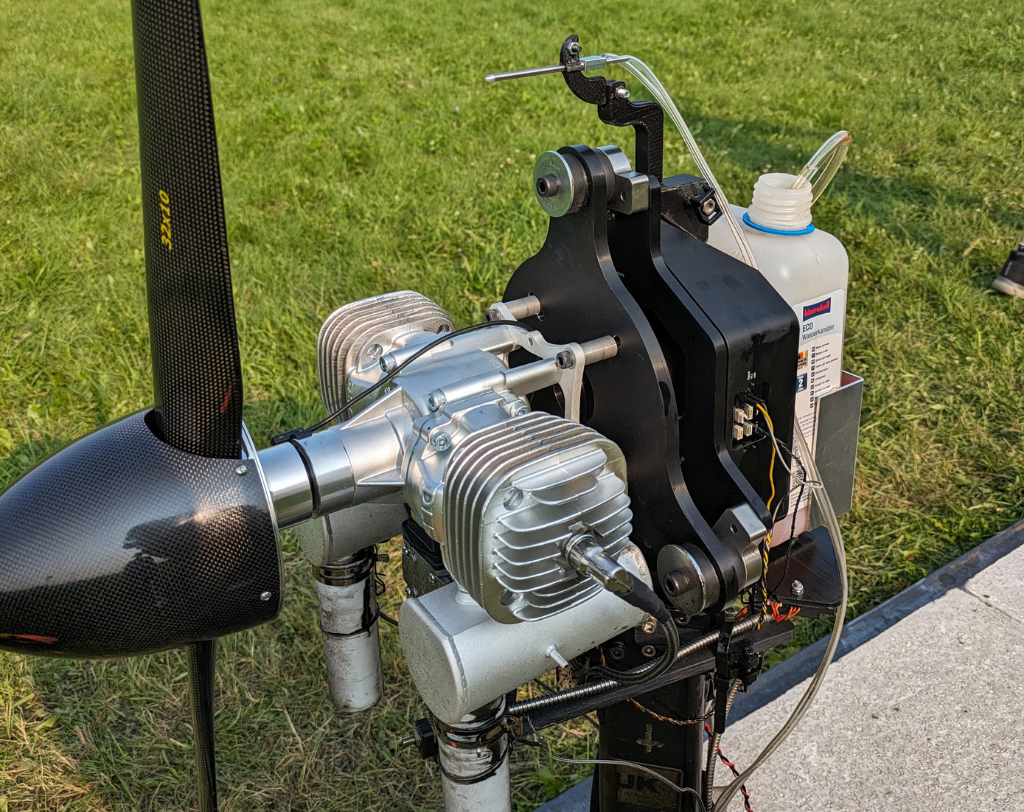

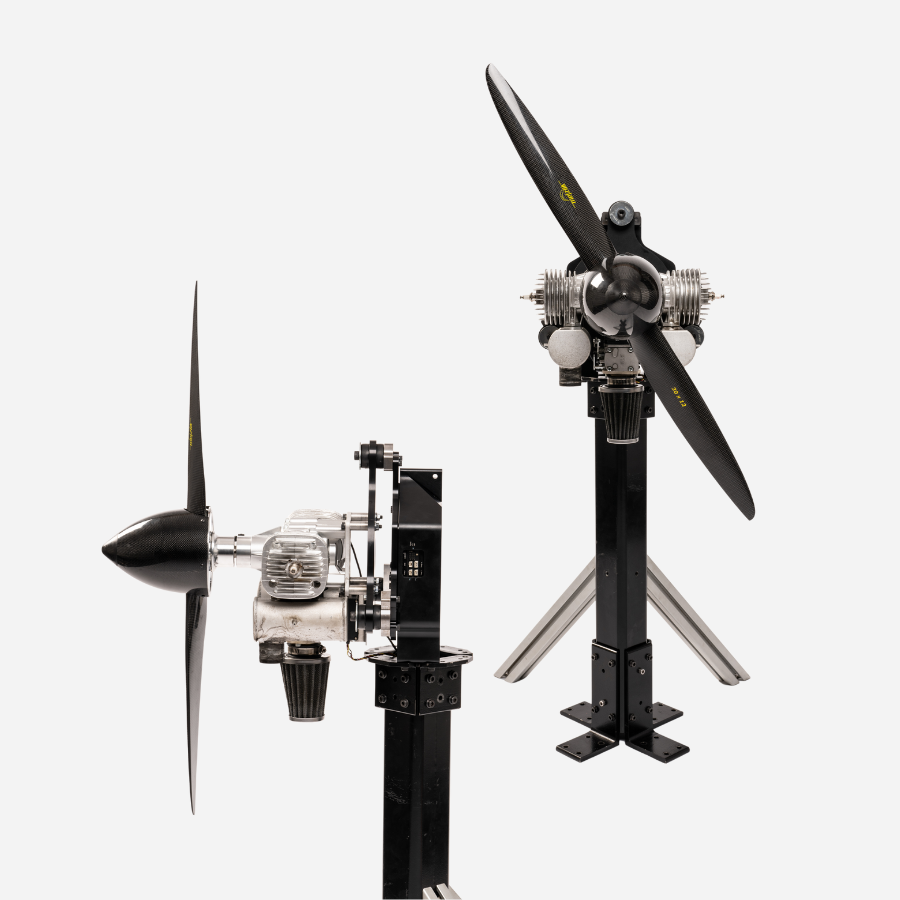

Flight Stand 60 testing an internal combustion engine outdoors

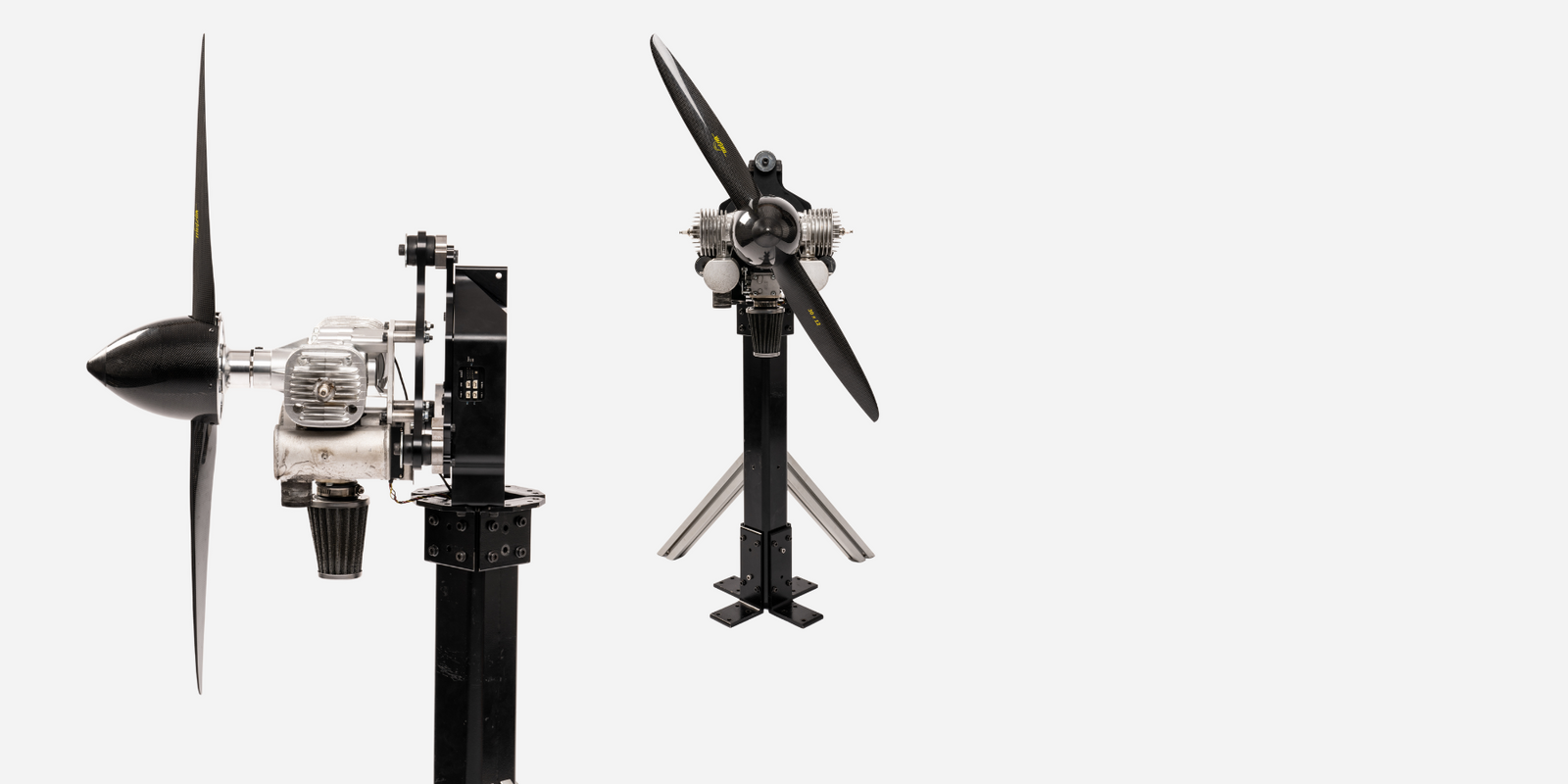

Thrust stand for UAV Engines

Flight Stand 60

Measure up to 60 kgf of thrust and 30 Nm of torque.

Get a quote
Python & sensor control

Use our API to control external sensors, probes, and more. Fully control the software using Python.

Precise measurement

Load cell matrix generation inspired by elements of ASTM E74/E2624 standards, adapted for multi-axis measurement.

Fuel flow measurement

Measure fuel flow alongside thrust, torque, RPM, and temperature to compare engine operating points.

Measure

Technical Specifications

Flight Stand 60

Thrust
up to 60 kgf
Torque
up to 30 Nm
RPM
up to 16800 RPM
Fuel flow
up to 800 mL/min
Temperature
up to 800 °C
Download datasheet

Applications

Improve Propulsion Performance

Engine break-in

Engine break-in

Carburetor tuning

Carburetor tuning

Endurance testing

Endurance testing

Fuel consumption

Fuel consumption

Cylinder performance

Cylinder performance

Temperature measurement

Temperature measurement

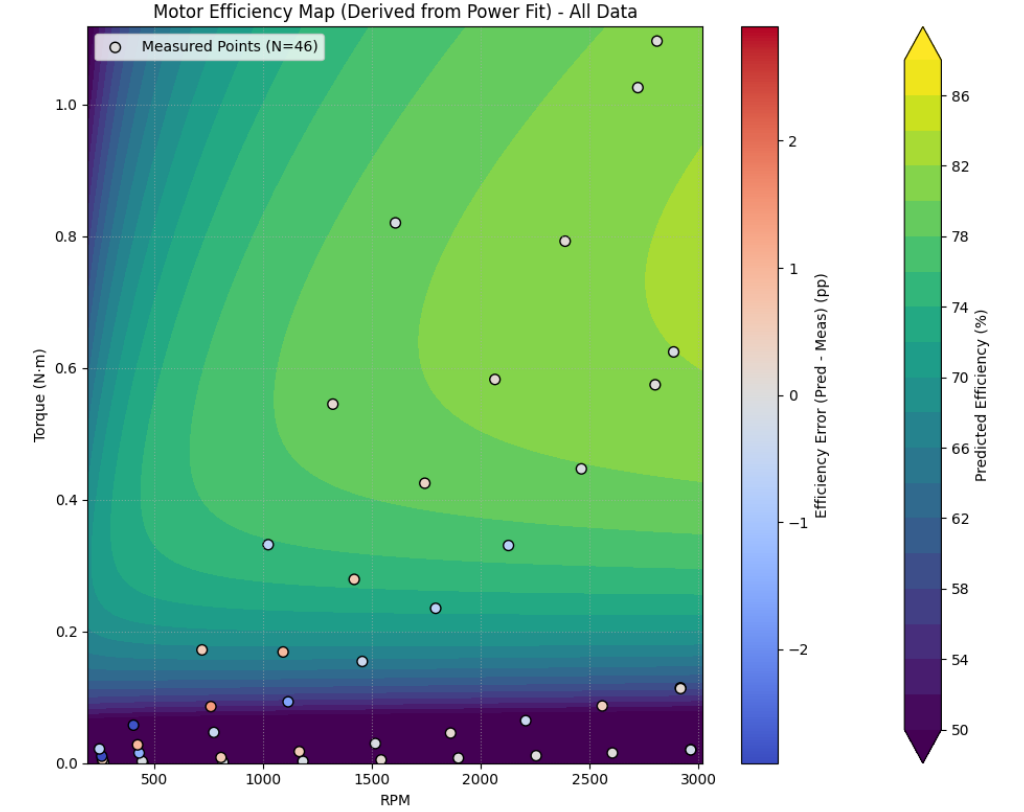

3D engine mapping

3D engine mapping

Crank angle visualization

Crank angle visualization

Performance

Features

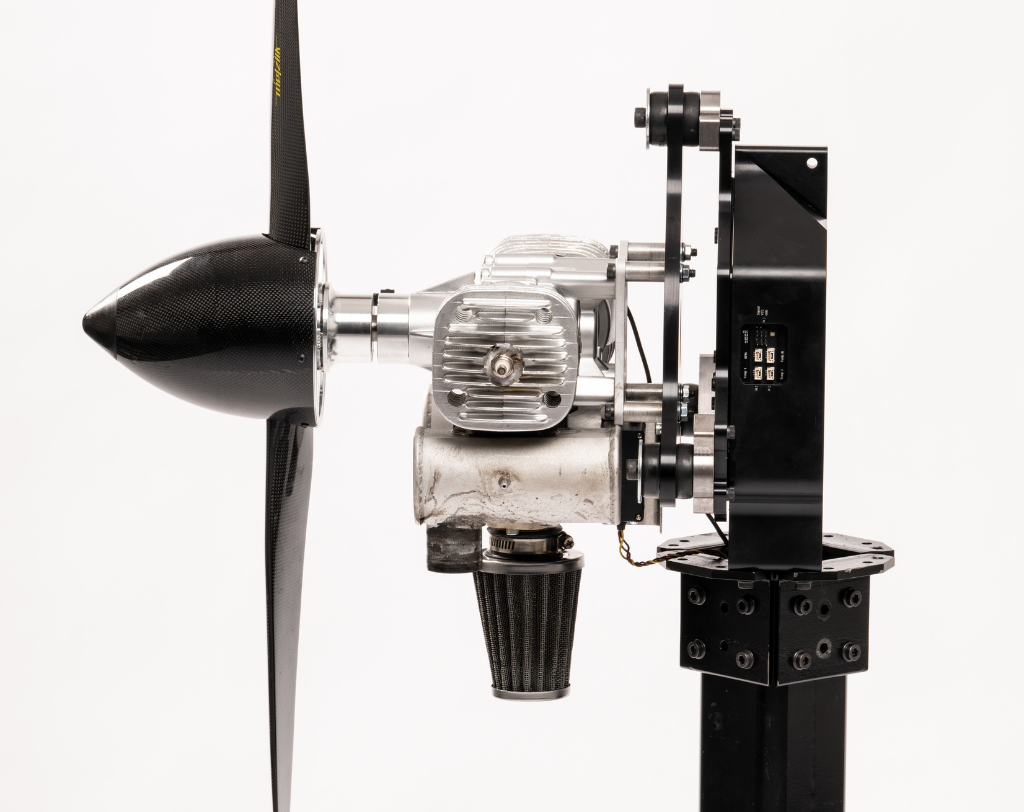

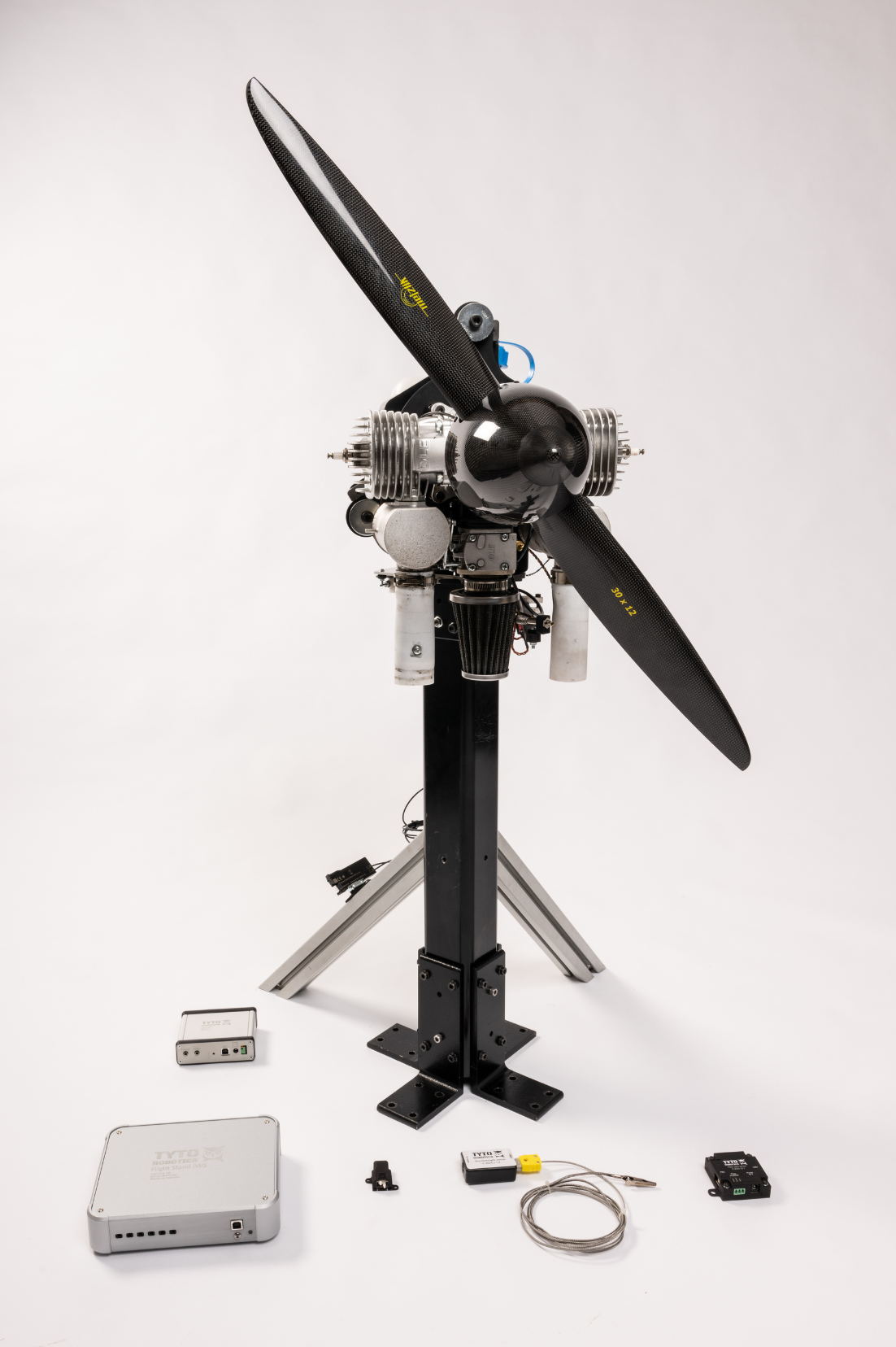

Flight Stand 60 engine test stand

Flight Stand 60

Sampling rate
1,000 Hz
Control
Manual, automated, and Python
Engine sensors
Fuel flow, RPM, and temperature
Dynamic analysis
Harmonics, vibration, and torque ripple

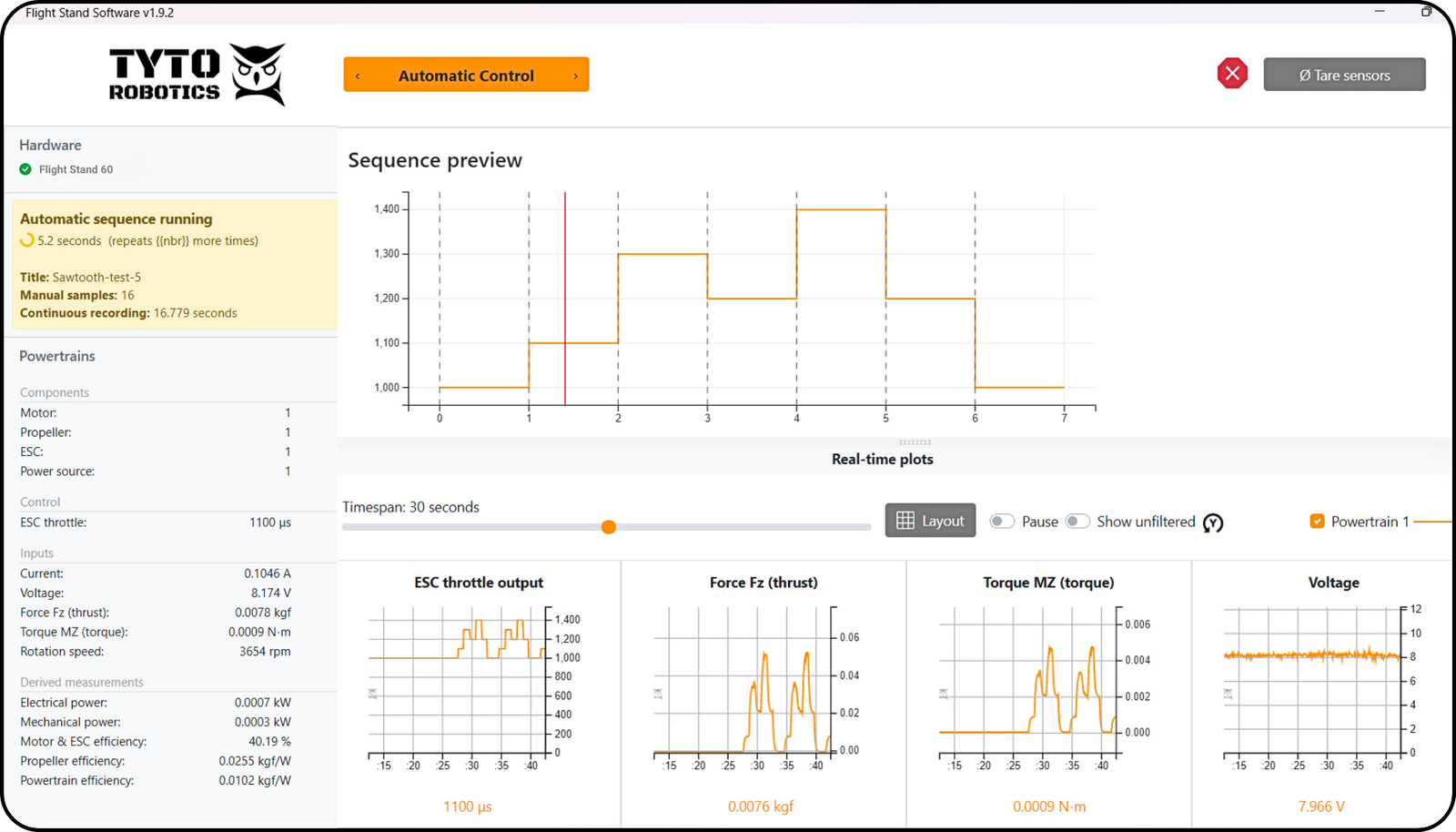

Flight Stand software

Dynamic testing with manual or automatic control

Included with your Flight Stand.

Discover the software

Customer Stories

Discover what customers think

“We discovered your low cost sUAS propeller test stand at AUVSI and I think you guys have done an outstanding job bringing this tool to the community.

Keep up the great work!”

Robert McSwain
Robert McSwain

Aerospace Engineer, NASA Langley Research Center

"We used the Flight Stand 50 to test subscale prototypes of our VTOL model.

We used an in-house wind tunnel setup and the test stand worked beautifully."

Kyle Werner
Kyle Werner

Engineer, BETA Technologies

"Having a reliable ready-to-use-out-of-the-box thrust stand solution was critical to meeting our need to test often and quickly iterate on designs in our development of the toroidal propeller."

Dr. Thomas Sebastian
Dr. Thomas Sebastian

Senior Staff, Structural & Thermal-Fluids Engineering, MIT Lincoln Laboratory

“We put our Flight Stand 150 on a weighted cart that we can roll onto the ramp of our R&D facility.

One of our favorite features of Tyto test equipment is the ability to easily integrate it into larger systems - we use it to test new power systems together with propellers.”

Mark Strauss
Mark Strauss

CEO, WaveAerospace

"The Flight Stand 15 has been fundamental in our efforts at UVIC CfAR to size a motor and propeller for our 21kg hybrid-electric multirotor.

On top of the comprehensive sensor suite accompanying the stand, the ability to automate testing has helped us to ensure that tests can be consistently performed."

Nicholas Castellani
Nicholas Castellani

Mechanical Engineer, UVIC CfAR

"The out of the box capability coupled with the ease of use and powerful software features made the Tyto DEP system a no brainer when we were sourcing a system to test and validate powertrains.

We certainly couldn’t have built this capability from the ground up with the same budget, let alone timeline."

Swinburne University AIR Hub
Brandon Piening

Research Engineer, AIR Hub

Training course

Build confidence in every test

Flight Stand training course resources

Easy to follow tutorials

Included with your Flight Stand

Master propulsion testing with our free training course, providing guidance every step of the way.

Complete with resources, tutorials, checklists and videos to support your test success.

Learn more

Your questions, answered

Flight Stand 60 FAQ

What is the warranty on the Flight Stand 60 engine test stand?

The Flight Stand 60 comes with a 1-year limited warranty. Extended warranty and MRO packages are available upon request. See our complete Terms of Service for full details and conditions.

How is the Flight Stand calibrated?

Tyto Robotics Flight Stands are calibrated using a process inspired by ASTM standards and adapted for UAV propulsion testing. Matrix generation is inspired by elements of ASTM E74 and E2624, using Tyto-developed metrology equipment to apply controlled thrust and torque loads representative of typical UAV test conditions. This includes over 20 loading points for Standard systems and over 200 for Pro systems across the full measurement range. Calibration is then performed using Tyto’s internal methodology, based on dead weights and precision load cells across representative portions of the measurement range. See the datasheet for full details.

What’s included with the Flight Stand 60 thrust stand?

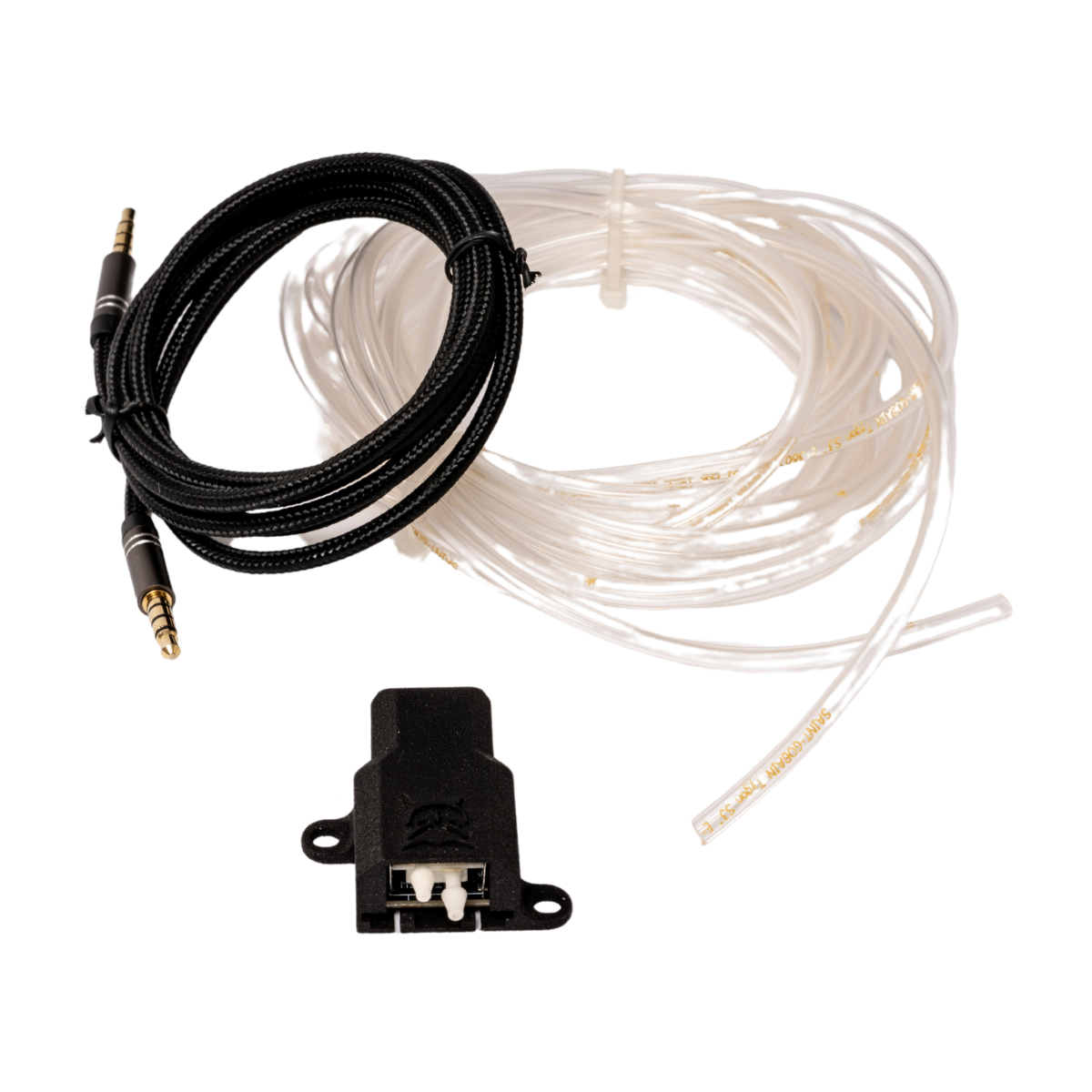

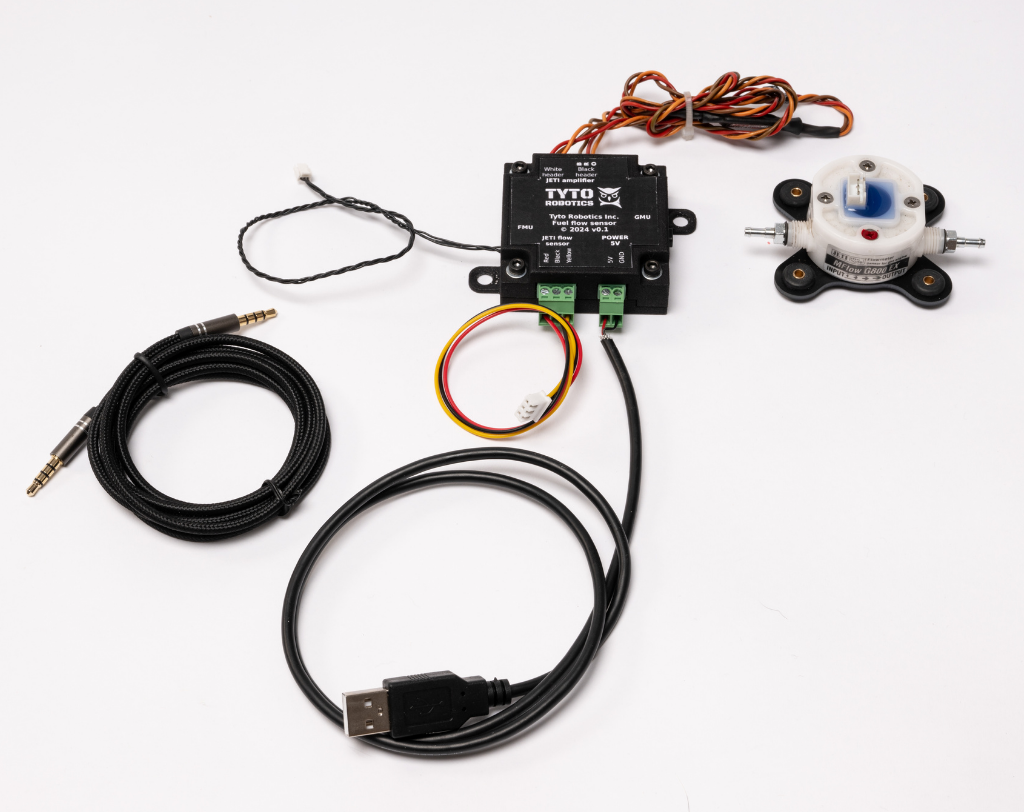

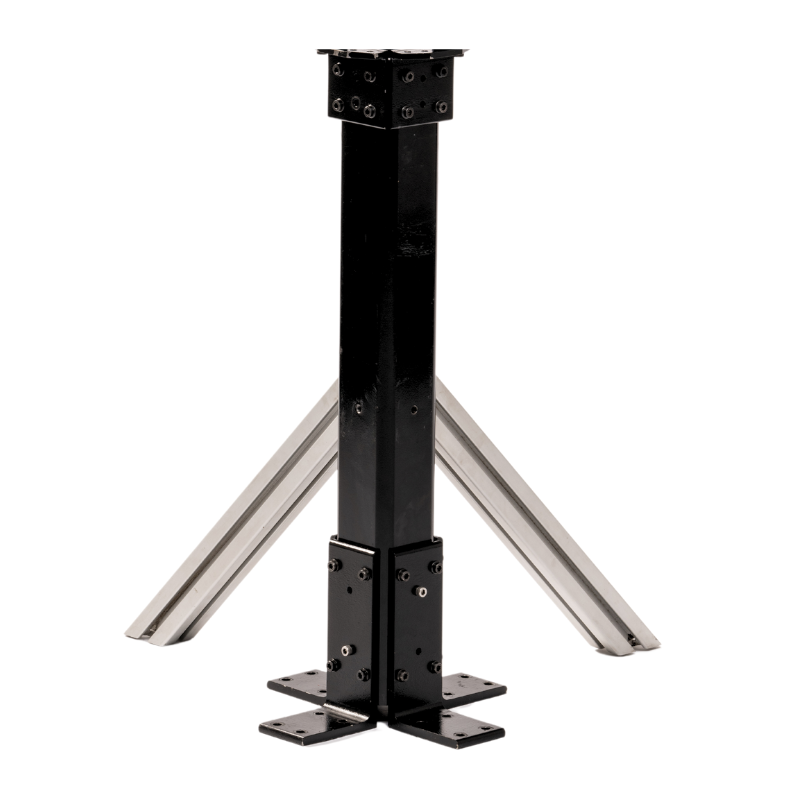

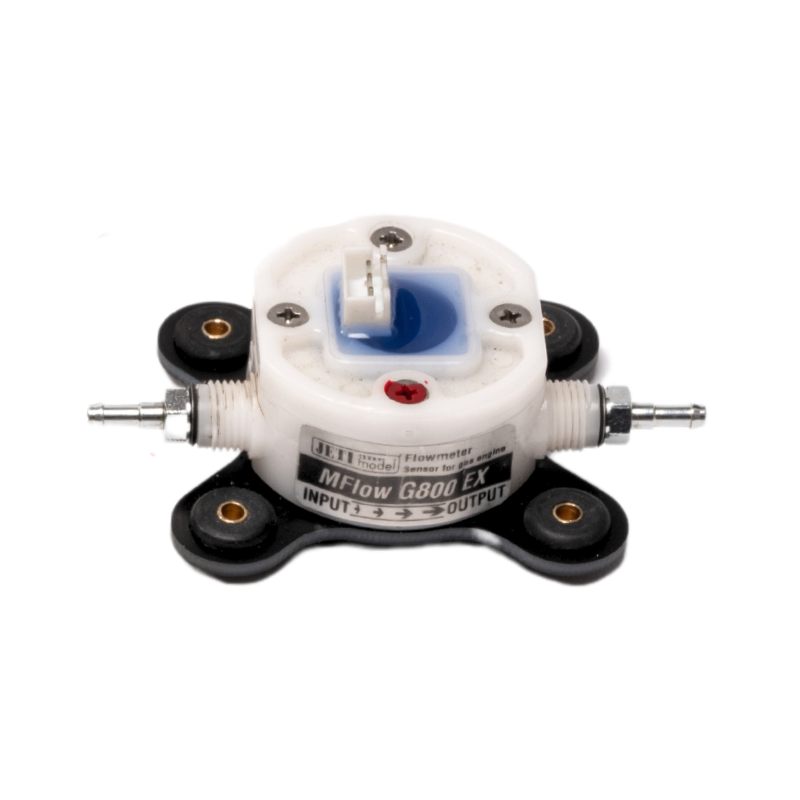

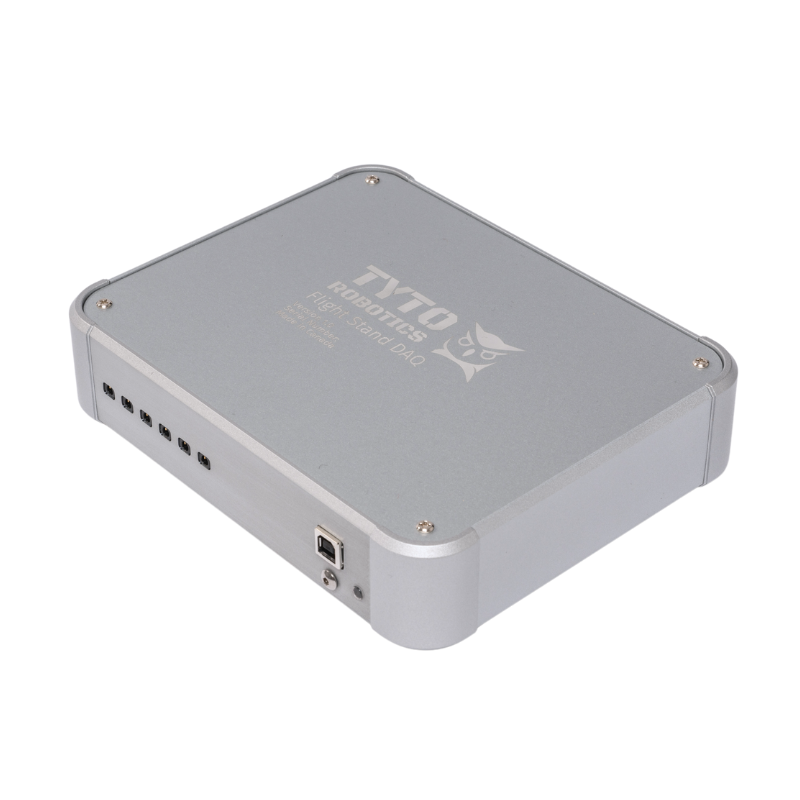

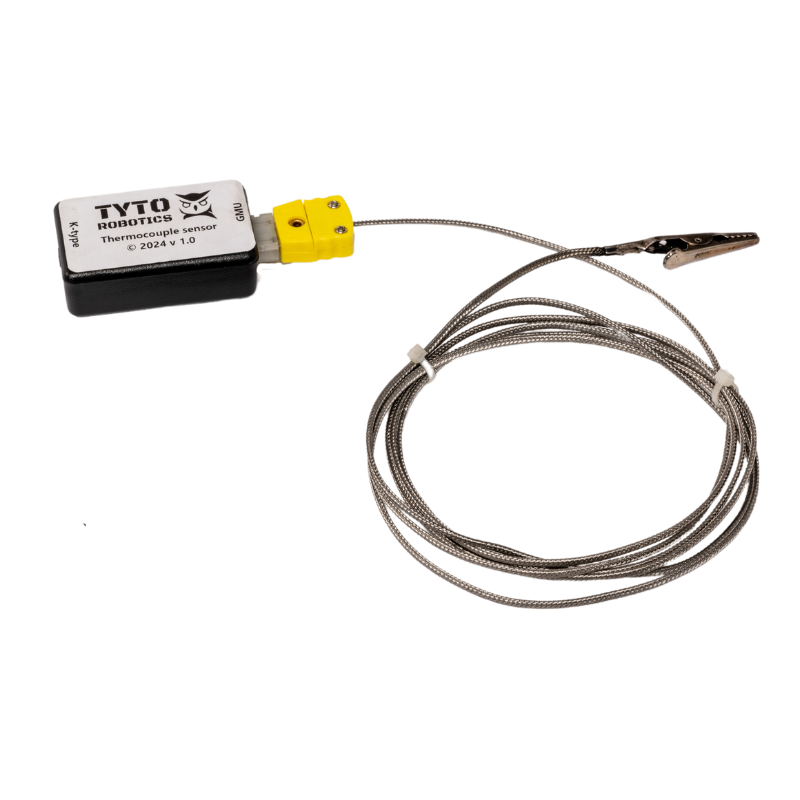

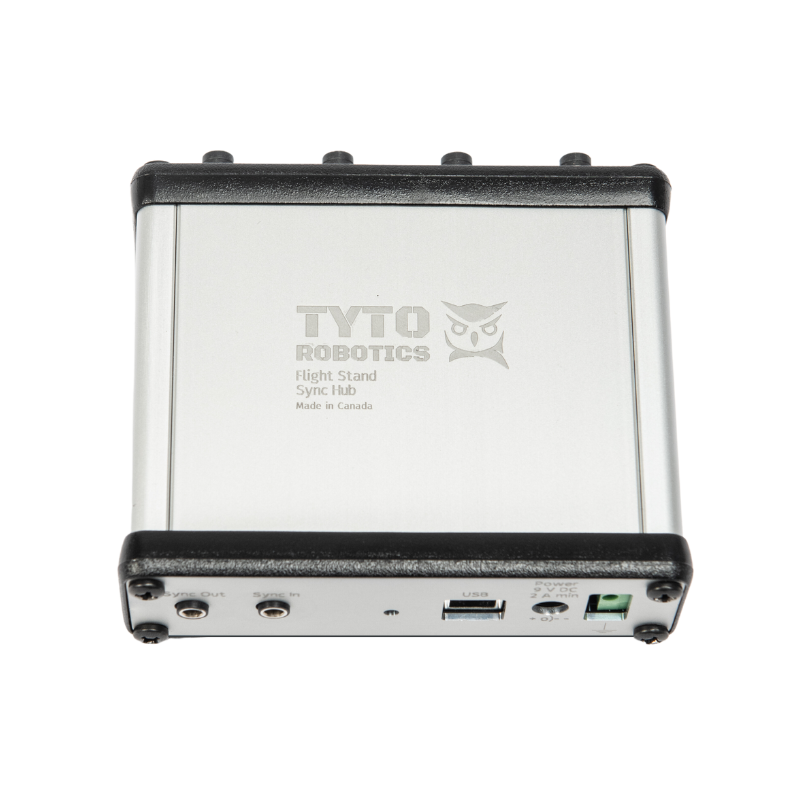

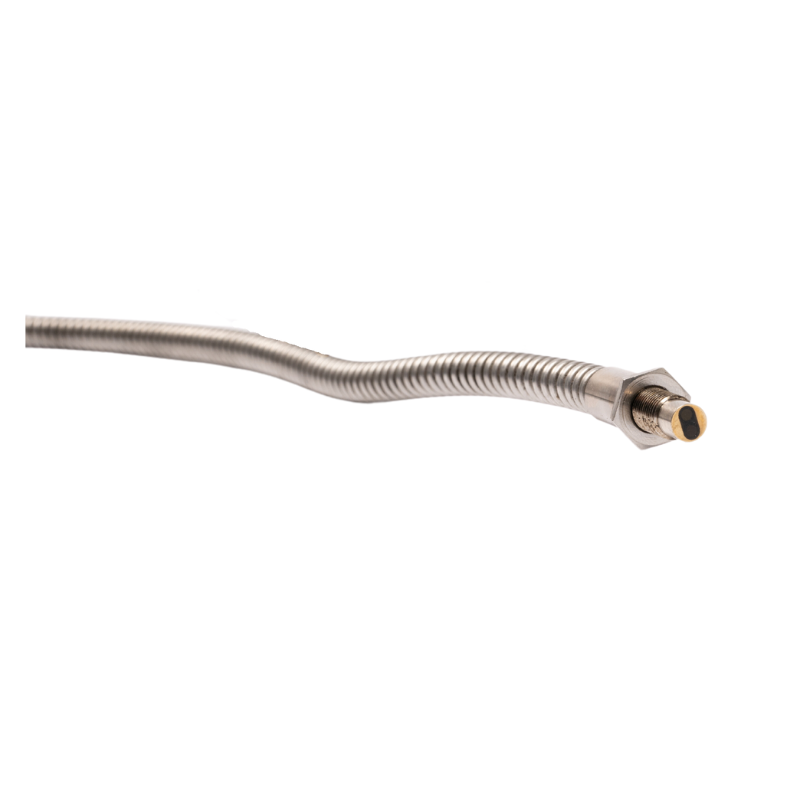

The Flight Stand 60 kit includes: test stand hardware, 1 engine mounting plate, 1 force measurement unit, 1 Flight Stand DAQ, 1 sync hub, 1 fuel flow sensor, 1 fiber optic RPM sensor, thermocouple temperature sensors, 1 airspeed pressure sensor, complimentary software for system control and data acquisition, and a complimentary training course that covers stand setup and propulsion testing theory.

Are engines, propellers, and starters included with the Flight Stand?

Engines, propellers, and starters are not included and must be sourced by the customer.

How do I mount my engine on the Flight Stand?

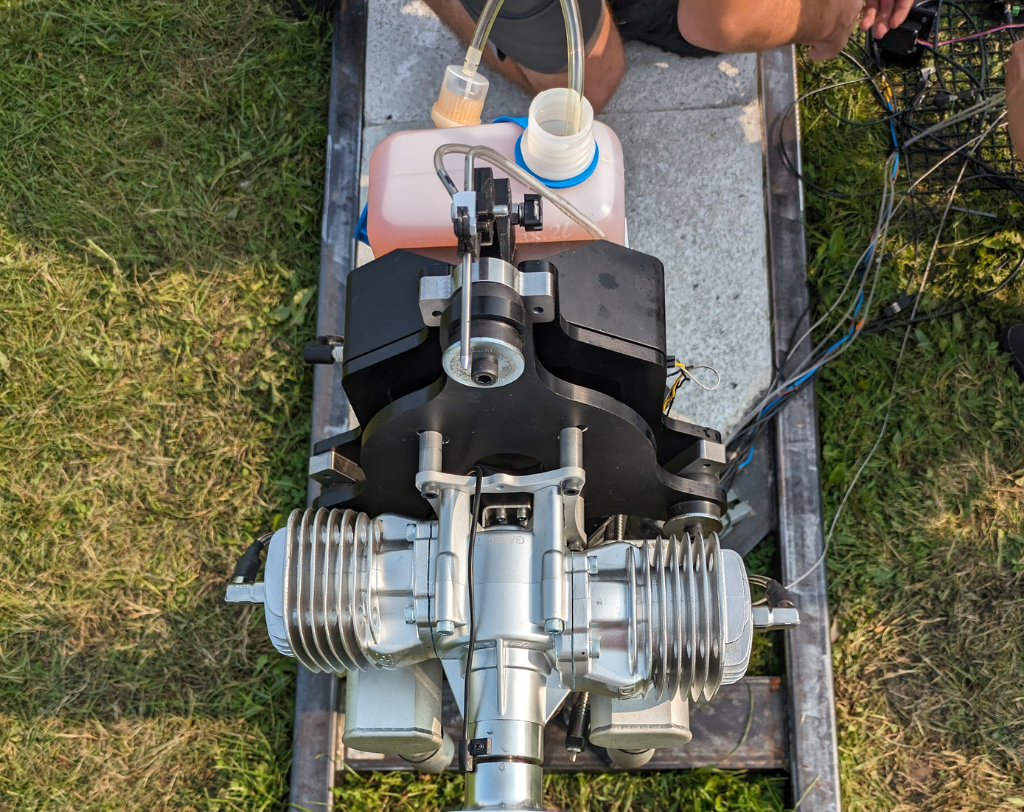

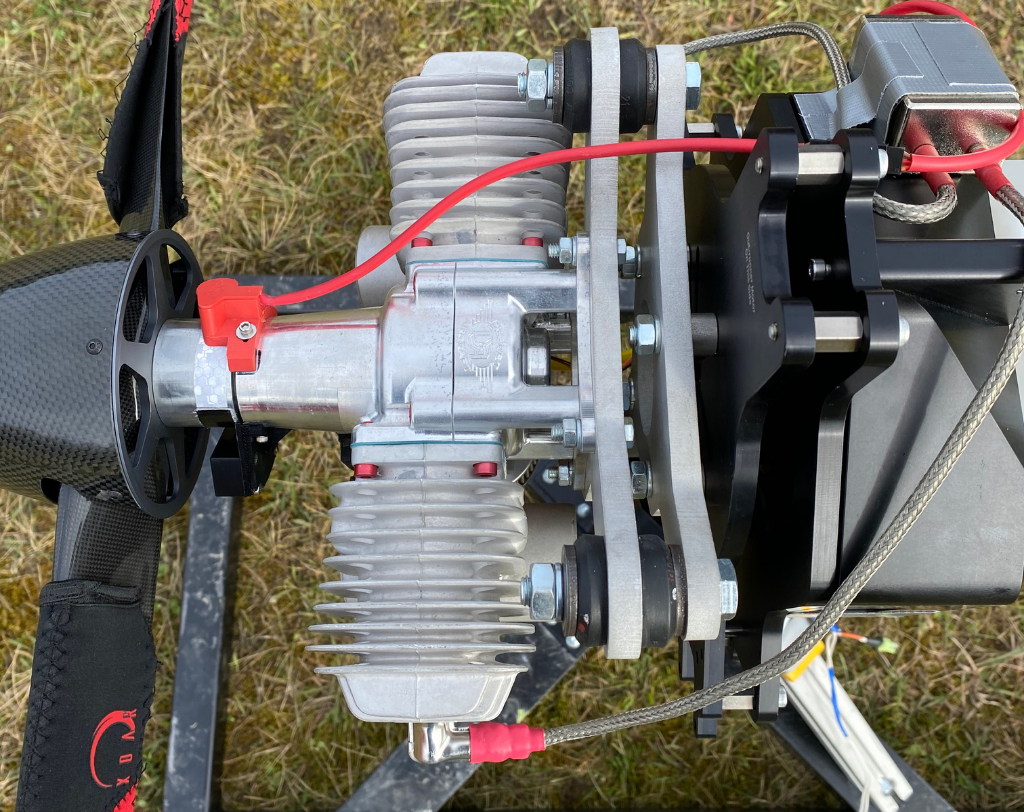

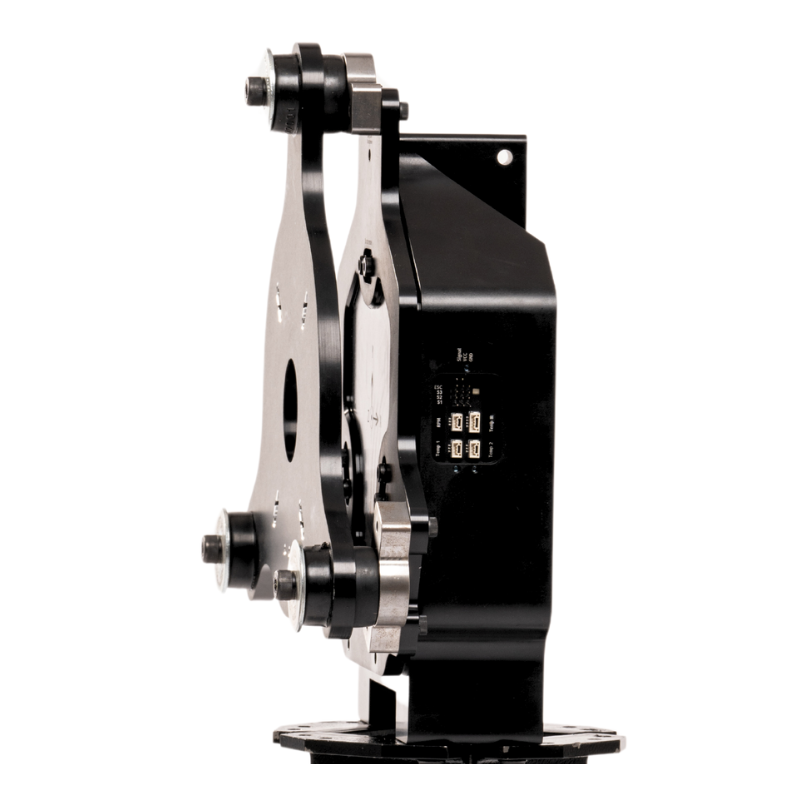

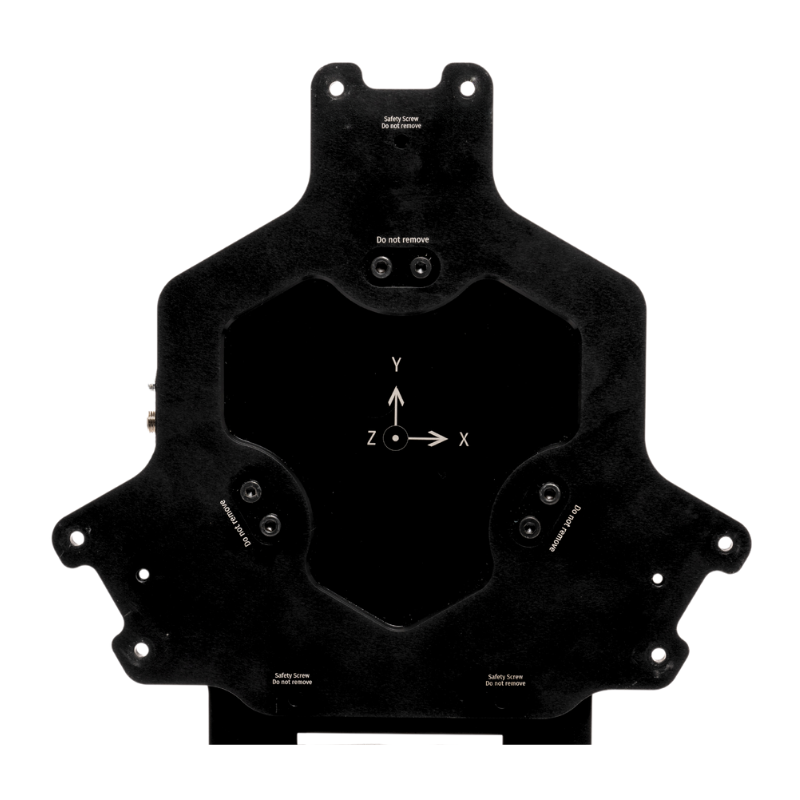

The Flight Stand 60 kit includes an engine mounting plate that is used to mount your engine on the stand. The user marks and drills their engine’s screw pattern on the plate. The plate can then be mounted on the Flight Stand Force Measurement Unit (FMU) using the dampers provided.

Can I use the stand in water?

Our test stands are not designed for use in water.
