Flight Stand propulsion testing

Thrust Stand for Mid-Sized UAVs

Flight Stand 15

Includes powerful software for testing up to 8 motors and propellers simultaneously.

Get a quote
Plug and Play

Fast setup and easy-to-use software get you testing right away, helping accelerate development timelines.

up to 1,000 Hz sampling rate

Measure vibration, evaluate ESC responsiveness, and characterize the dynamic response of motors and propellers

Precise measurement

Load cell matrix generation inspired by elements of ASTM E74/E2624 standards, adapted for multi-axis measurement.

Measure

Technical Specifications

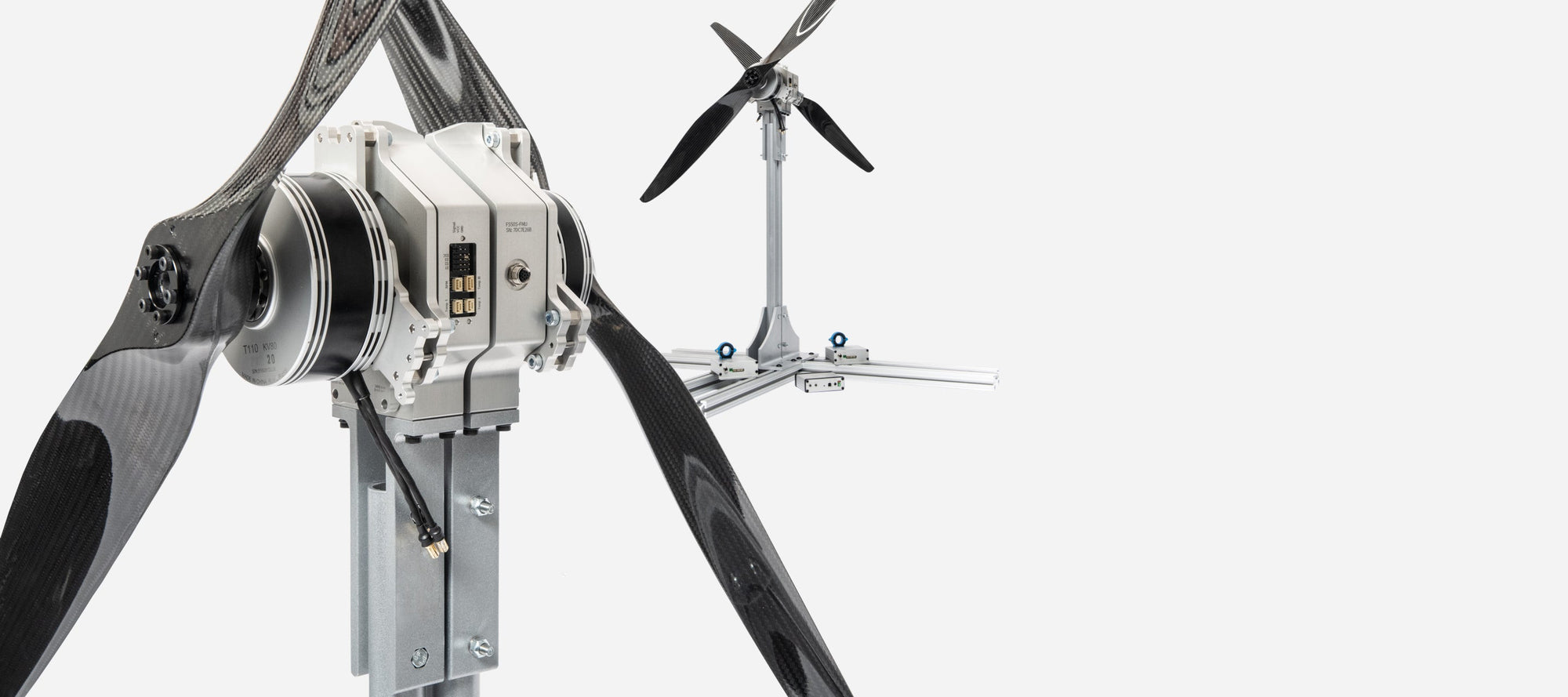

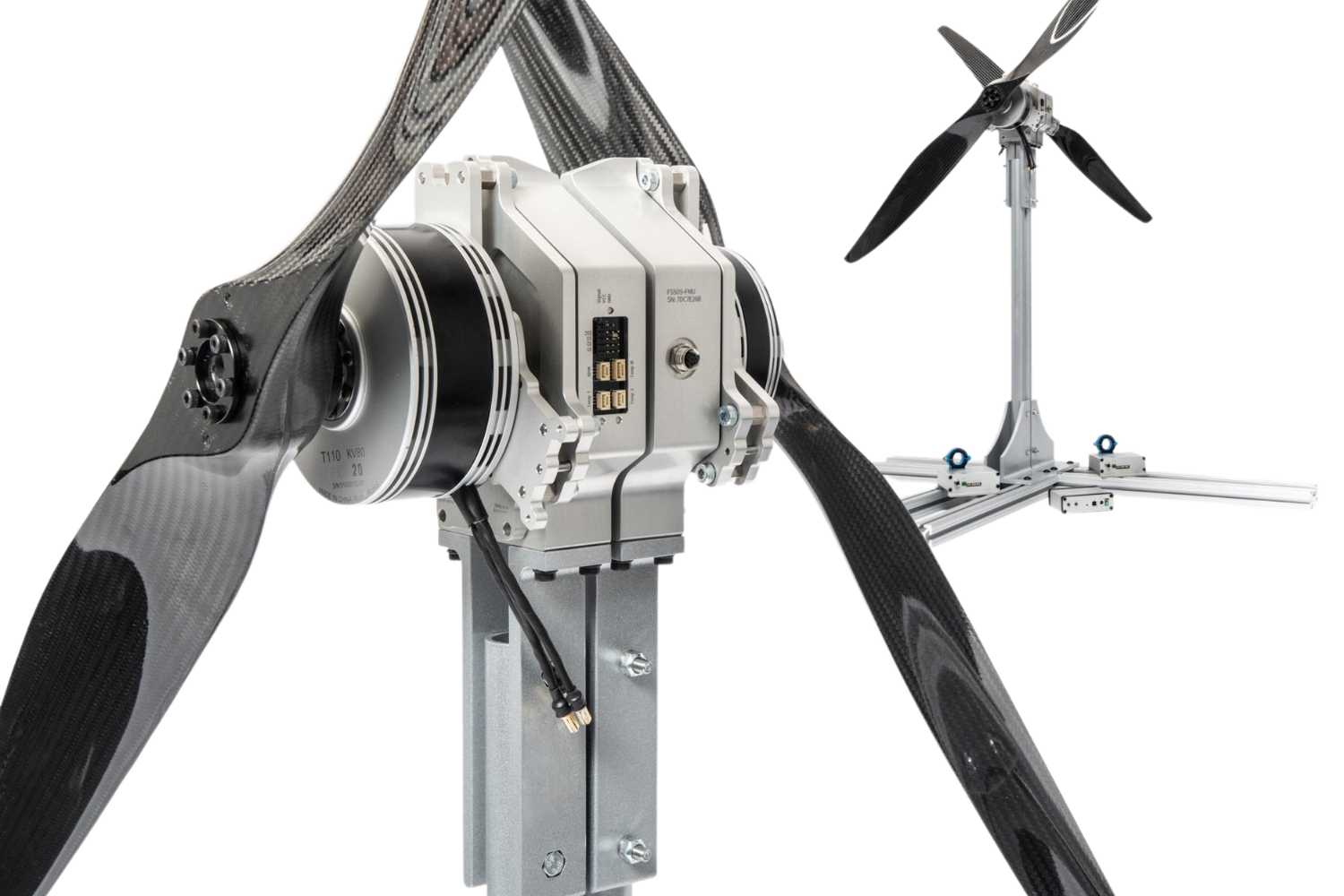

Flight Stand 15 Standard with rotating photographed propeller, adapter and motor

Standard & Pro

Flight Stand 15

Thrust
up to 15 kgf
Torque
up to 8 Nm
Rotation speed
up to 30000 RPM
Voltage
up to 180 V
Current
up to 150 A
Download datasheet

Applications

Improve Performance

Motor Performance Mapping

Motor Performance Mapping

Propeller Efficiency vs. Airspeed

Propeller Efficiency vs. Airspeed

Propeller balancing

Propeller balancing

Thrust to Power Ratios

Thrust to Power Ratios

Fast Fourier Transformation

Fast Fourier Transformation

Compare motor-propeller combinations

Compare motor-propeller combinations

Options

Choose your model

Standard and Pro versions available.

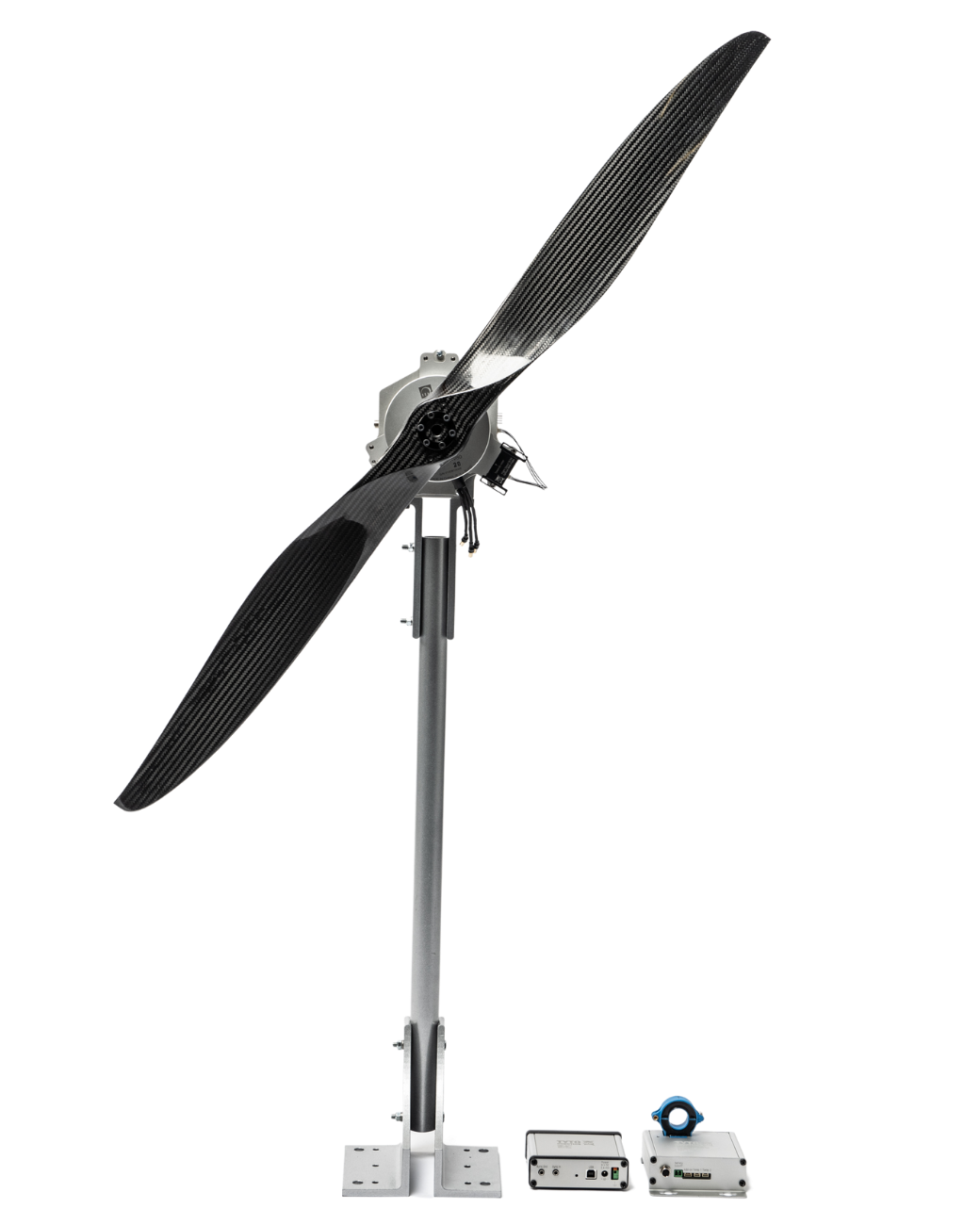

Flight Stand 15 Standard with silver stand hardware

Flight Stand 15

Standard Version

Standard measurements with basic calibration and sampling rate

Sampling rate
100 Hz
Calibration matrix
>20 points
Analog inputs
No
Accuracy
Constant on full scale
Extra sensors
N/A

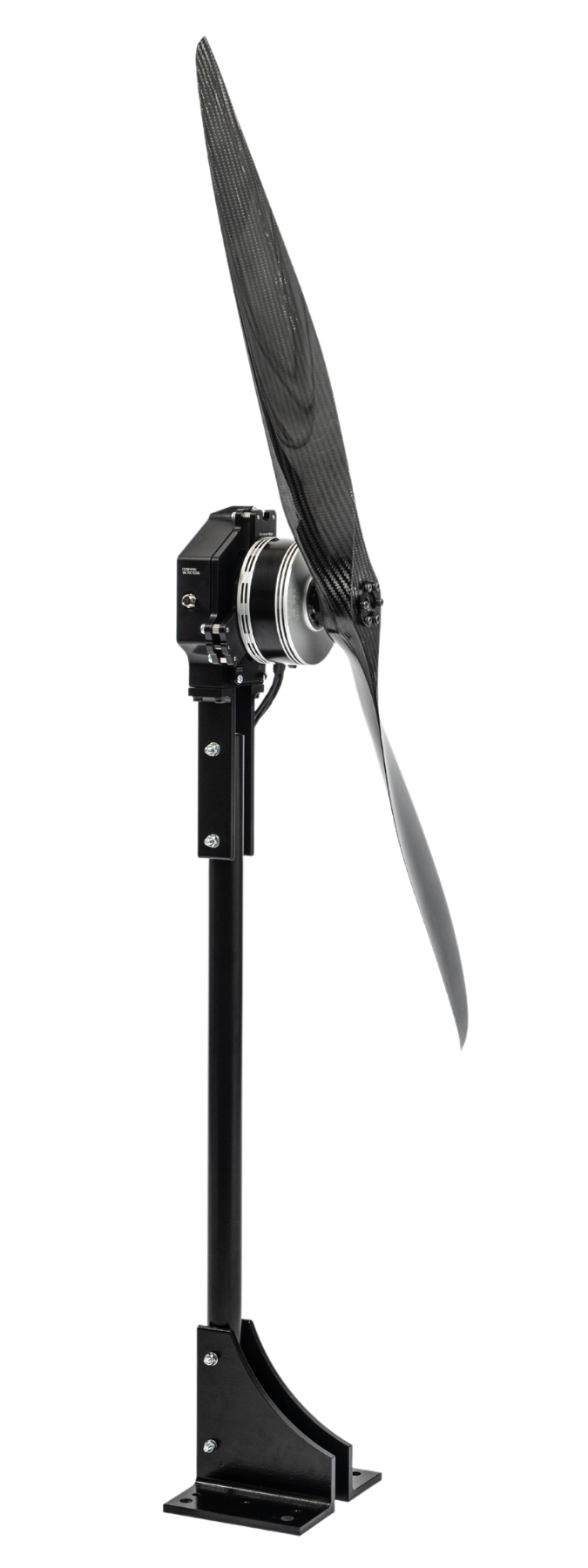

Flight Stand 15 Pro with black stand hardware

Flight Stand 15

Pro Version

Enhanced measurements with advanced calibration, high sampling rate, and additional features

Sampling rate
1,000 Hz
Calibration matrix
>200 points
Analog inputs
Yes
Accuracy
Relative to measured value
Extra sensors
Airspeed sensor

Flight Stand software

Dynamic testing with manual or automatic control

Included with your Flight Stand.

Discover the software

The Flight Stand Advantage

Built for better propulsion testing

Frictionless measurement system

Frictionless measurement system

Solid state measurement system with no bearings or hinges.

Crosstalk calibrated load cell

Crosstalk calibrated load cell

Load cell matrix generation inspired by elements of ASTM E74/E2624 standards, adapted for multi-axis measurement.

Aerodynamic design

Aerodynamic design

Compact shape reduces interference and mimics drone design.

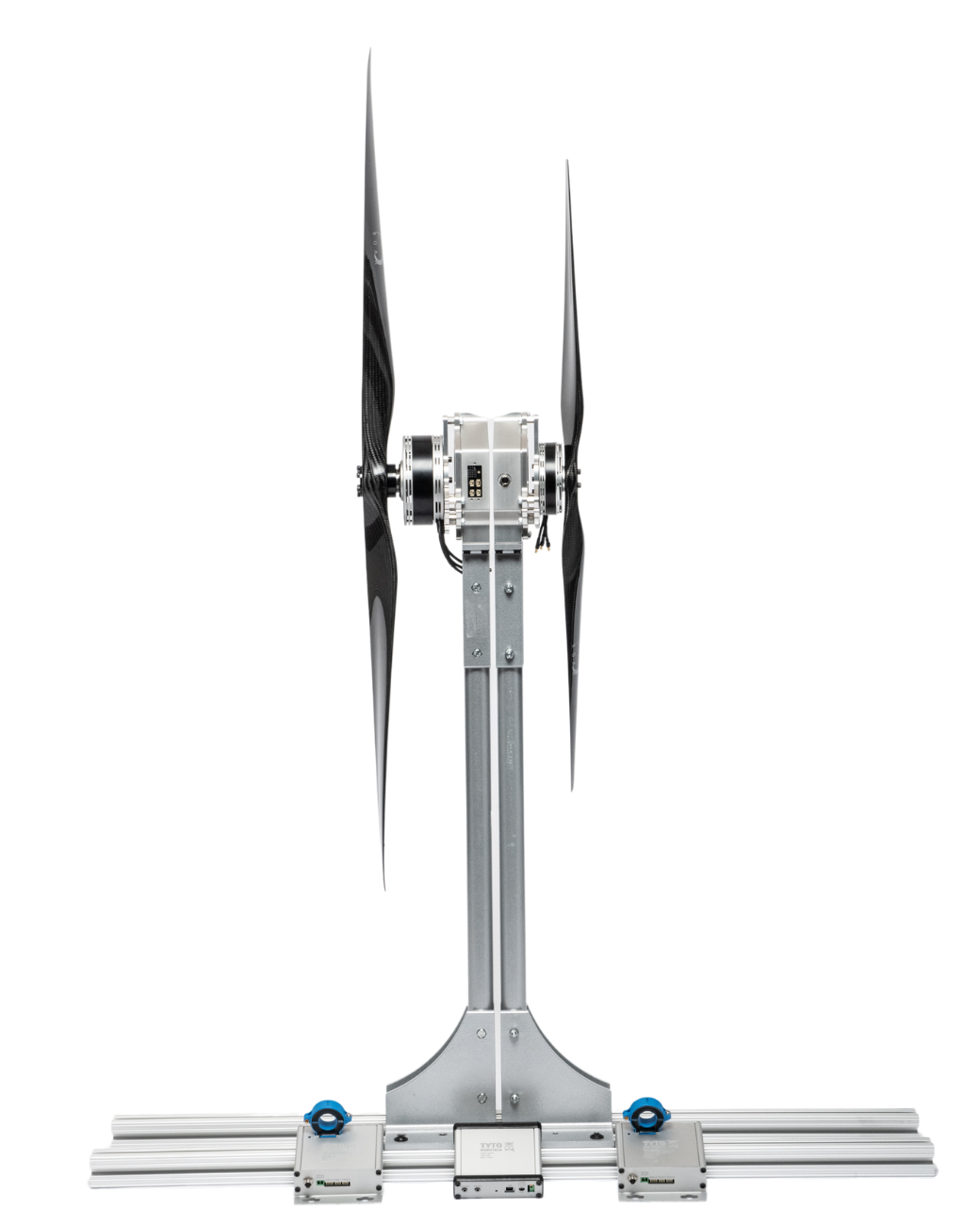

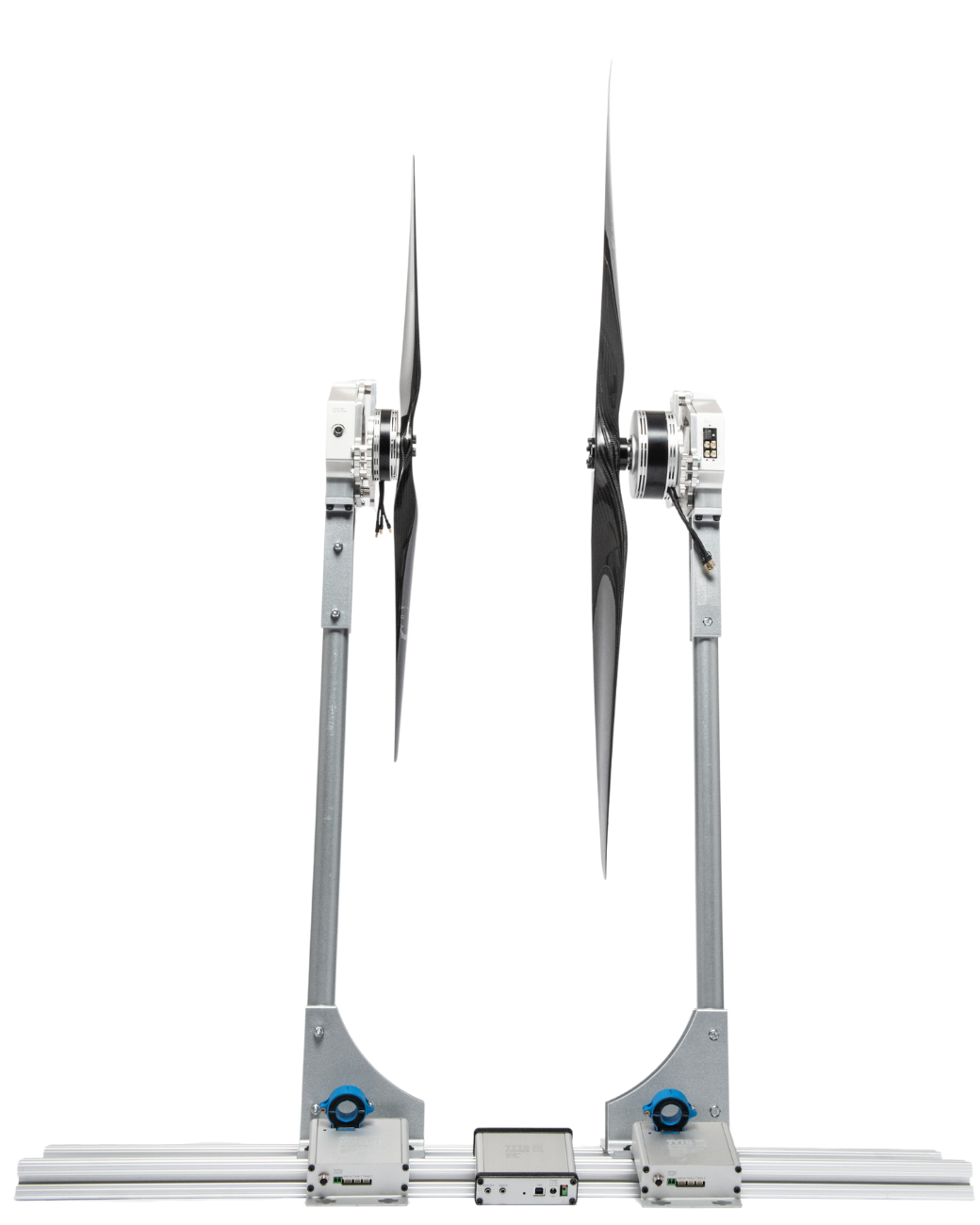

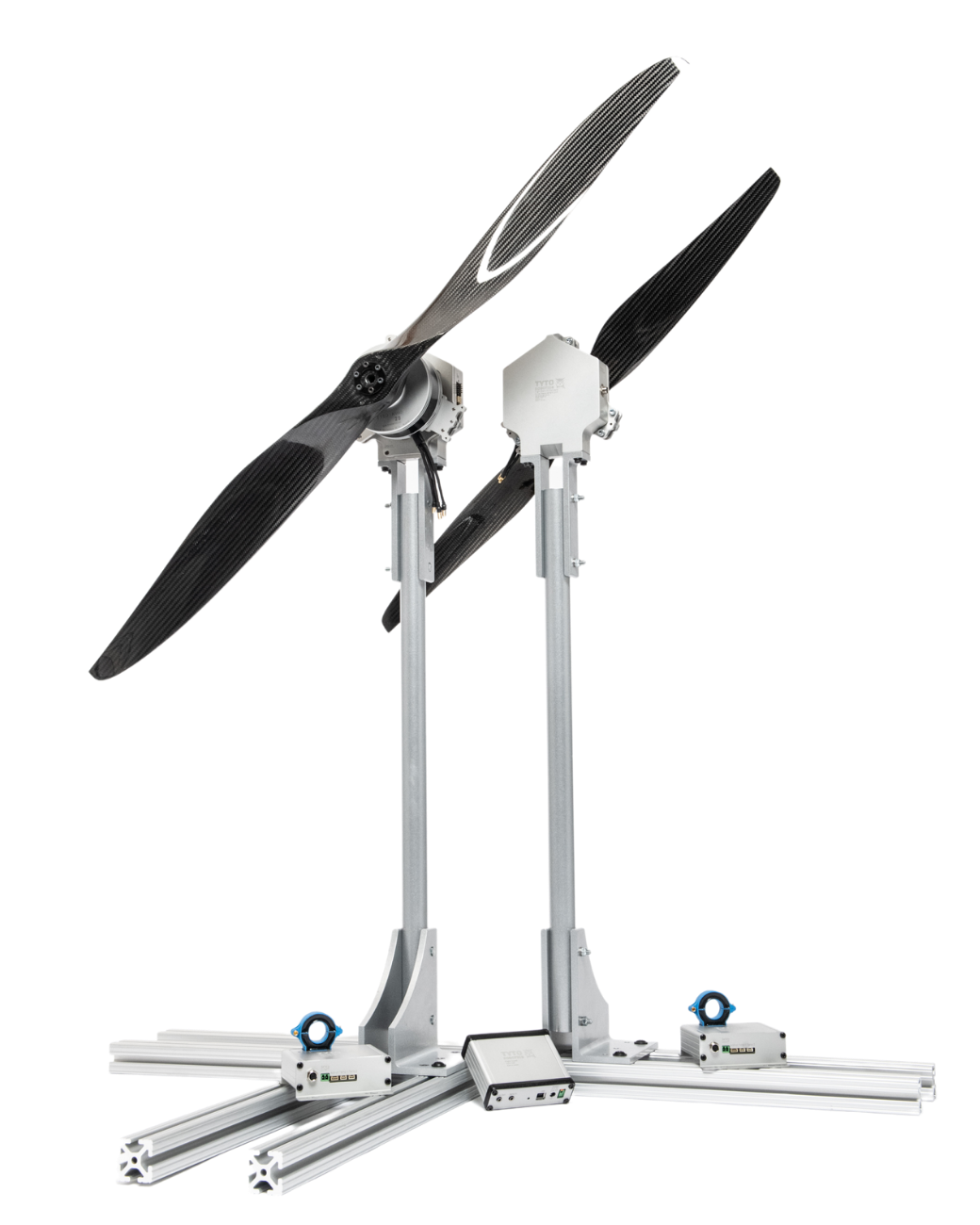

Realistic coaxial testing

Realistic coaxial testing

Test coaxial motor and propeller configurations with supported mounting hardware.

Best in class software

Best in class software

Easy to use, comprehensive software included with every Flight Stand.

Wireless control

Wireless control

Remotely control the Flight Stand from any computer on your network.

Award winning technology

Award winning technology

Winner of the Regional Innovation Award from the Order of Engineers of Quebec.

Excellent customer support

Excellent customer support

Receive answers to your questions in a timely and friendly manner.

Powertrain mapping

Powertrain mapping

Map and test components for up to 8 powertrains.

Training course

Build confidence in every test

Flight Stand training course resources

Easy to follow tutorials

Included with your Flight Stand

Master propulsion testing with our free training course, providing guidance every step of the way.

Complete with resources, tutorials, checklists and videos to support your test success.

Learn more

Your questions, answered

Flight Stand 15 FAQ

What is the warranty on the Flight Stand 15 thrust stand?

The Flight Stand 15 comes with a 1-year limited warranty. Extended warranty and MRO packages are available upon request. See our complete Terms of Service for full details and conditions.

How is the Flight Stand calibrated?

Tyto Robotics Flight Stands are calibrated using a process inspired by ASTM standards and adapted for UAV propulsion testing. Matrix generation is inspired by elements of ASTM E74 and E2624, using Tyto-developed metrology equipment to apply controlled thrust and torque loads representative of typical UAV test conditions. This includes over 20 loading points for Standard systems and over 200 for Pro systems across the full measurement range. Calibration is then performed using Tyto’s internal methodology, based on dead weights and precision load cells across representative portions of the measurement range. See the datasheet for full details.

What’s included with the Flight Stand 15 thrust stand?

The Flight Stand 15 kit includes: thrust stand hardware, 1 motor mounting plate, 1 force measurement unit, 1 electrical measurement unit, 1 sync hub, 1 optical RPM probe, 2 temperature sensors, complimentary software for system control and data acquisition, and a complimentary training course that covers stand setup and propulsion testing theory. The Pro model includes an additional IR temperature sensor. Coaxial Flight Stand 15 kits include an additional sync hub, ground rails, and hardware for securing the Flight Stands.

Are motors, propellers, and ESCs included with the Flight Stand?

Motors, propellers, and ESCs are not included and must be sourced by the customer.

Which ESC protocols are supported?
  • Standard PWM: 50, 100, 200, 300, 400, 500 Hz
  • DShot: 150, 300, 600
  • OneShot: 42, 125
  • MultiShot
  • CAN-Bus
How do I mount my motor on the Flight Stand thrust stand?

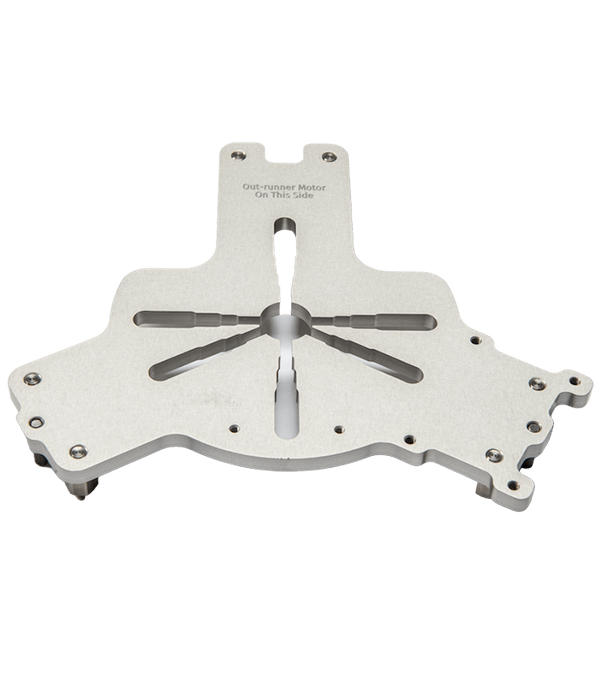

The Flight Stand 15 kit includes a motor mounting plate that is used to mount your motor on the stand. The plate has pre-drilled slots where screws can pass through the plate and into the holes on your motor. The plate is then mounted on the Flight Stand’s force measurement unit (FMU) using the standoffs provided.

Can I use the stand in water?

The stand is not designed for use in water.
