Flight Stand propulsion testing

Thrust stand for very large motors and propellers

Flight Stand 500

Measure up to 500 kgf of thrust and 1500 Nm of torque

Get a quote
Plug and Play

Fast setup and easy-to-use software get you testing right away, helping accelerate development timelines.

1,000 Hz sampling rate

Measure vibration, evaluate ESC responsiveness, and characterize the dynamic response of motors and propellers.

Precise measurement

Load cell matrix generation inspired by elements of ASTM E74/E2624 standards, adapted for multi-axis measurement.

Measure

Technical Specifications

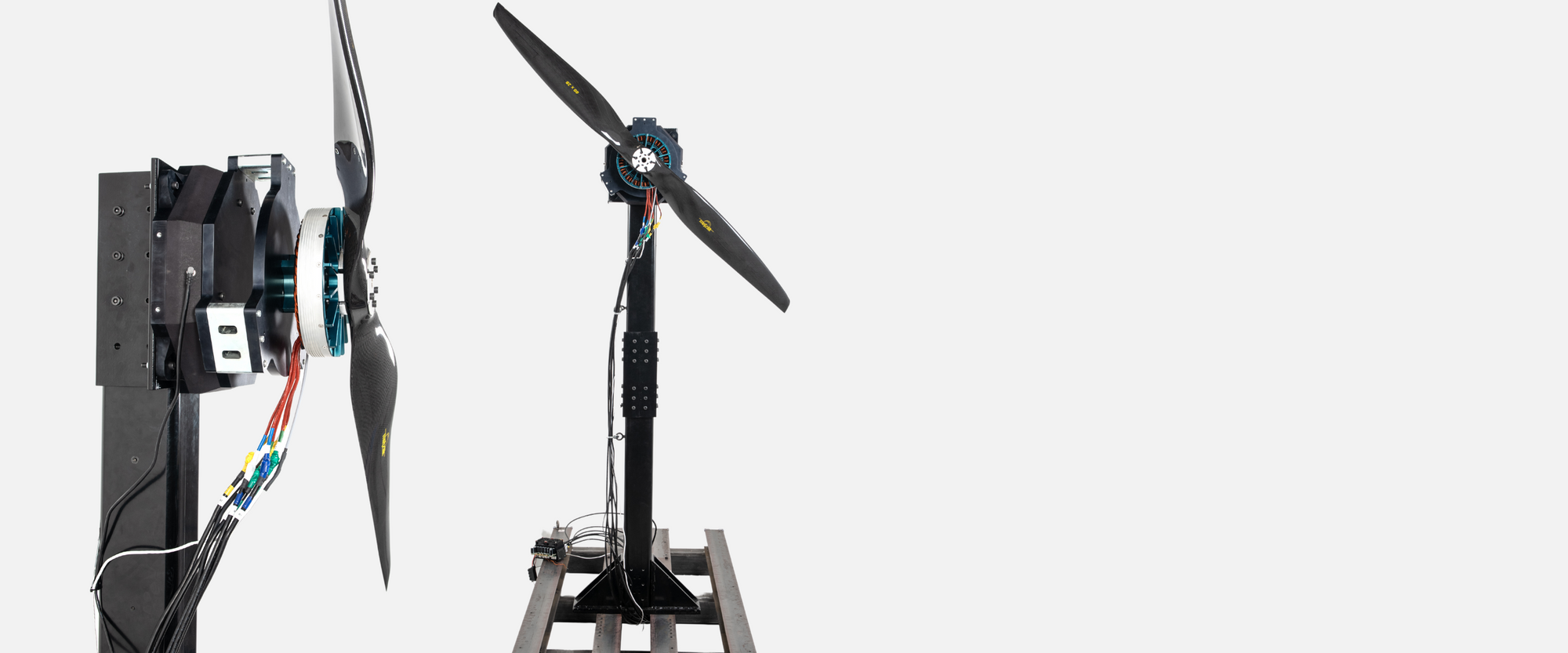

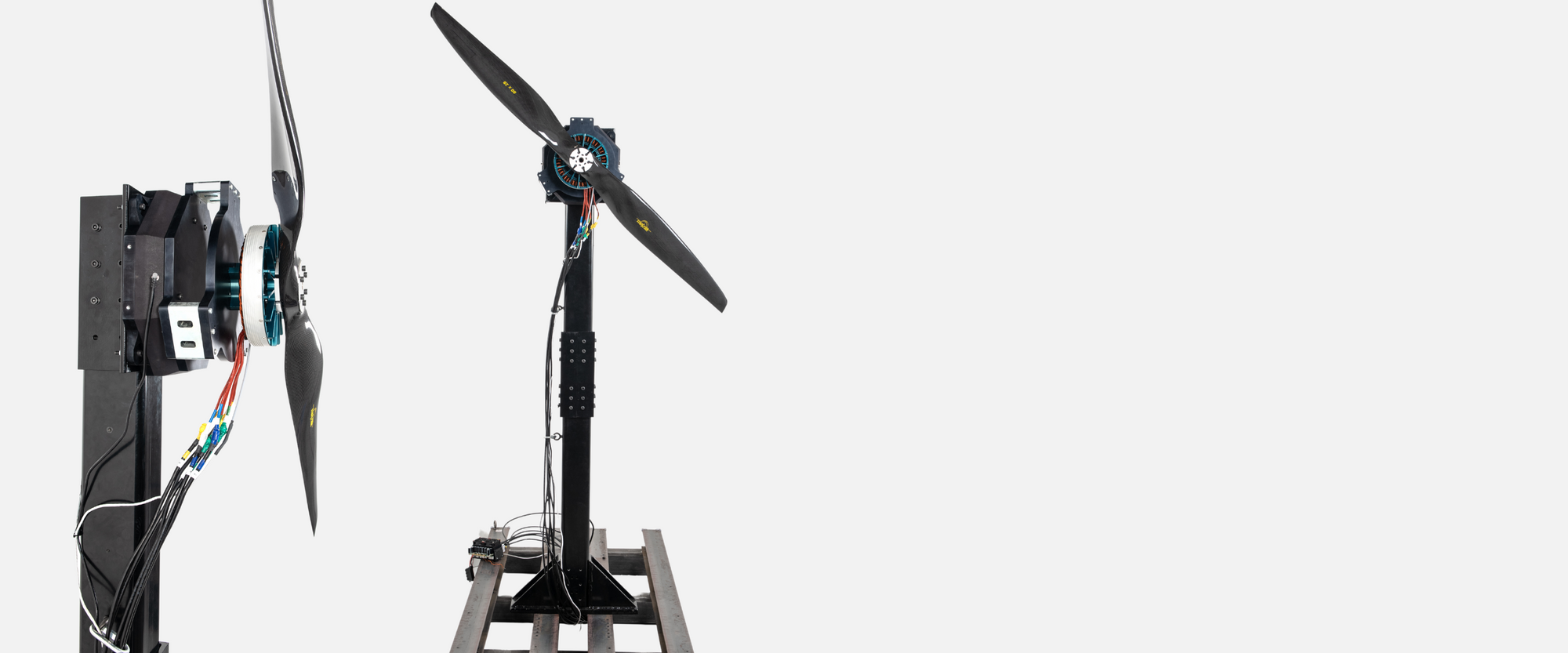

Flight Stand 500 with a rotating propeller and animated specifications

Flight Stand 500

Thrust
up to 500 kgf
Torque
up to 1500 Nm
Voltage
up to 1000 V
Current
up to 500 A
Rotation speed
up to 16800 RPM
Download datasheet

Applications

Improve Performance

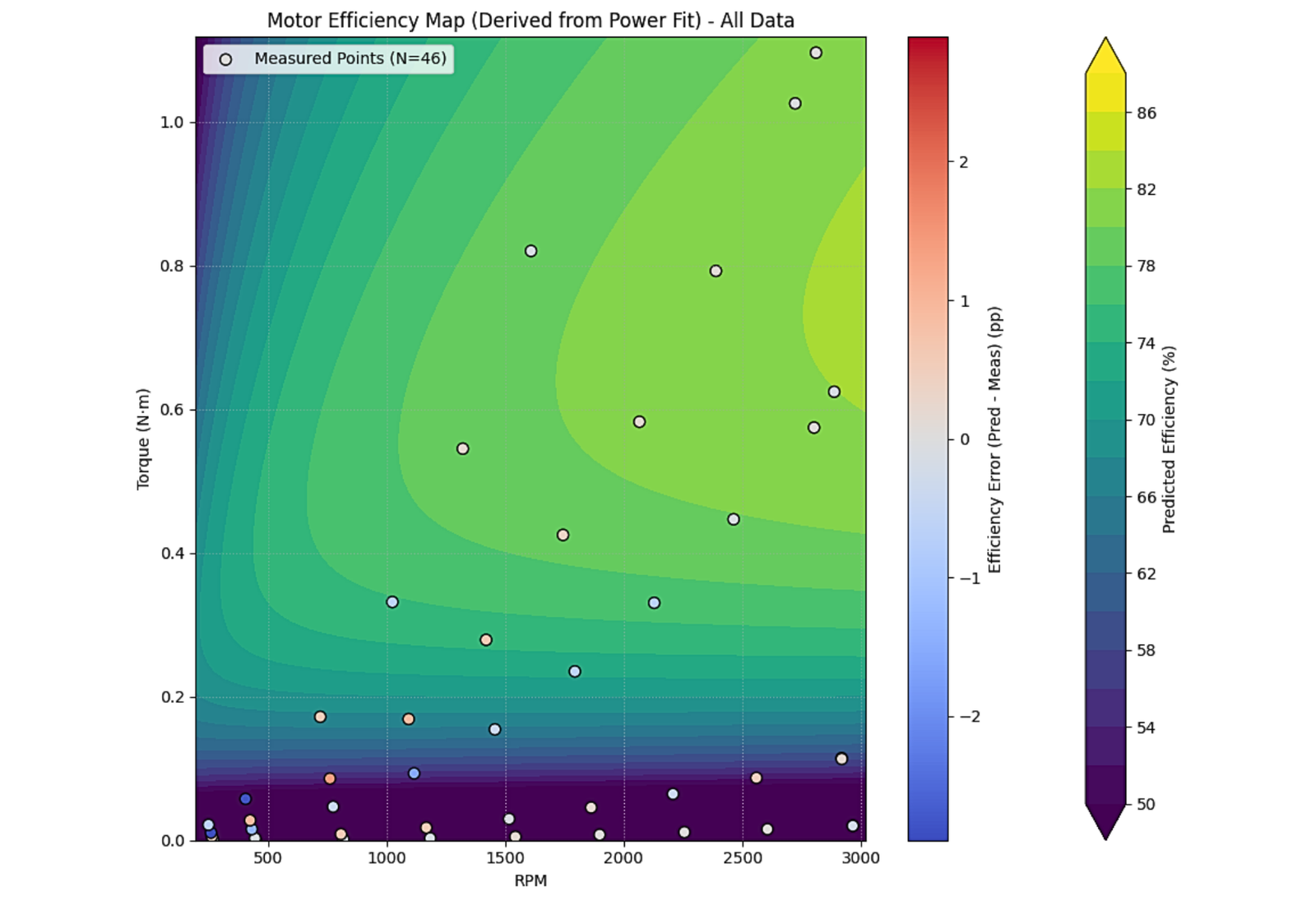

Motor Performance Mapping

Motor Performance Mapping

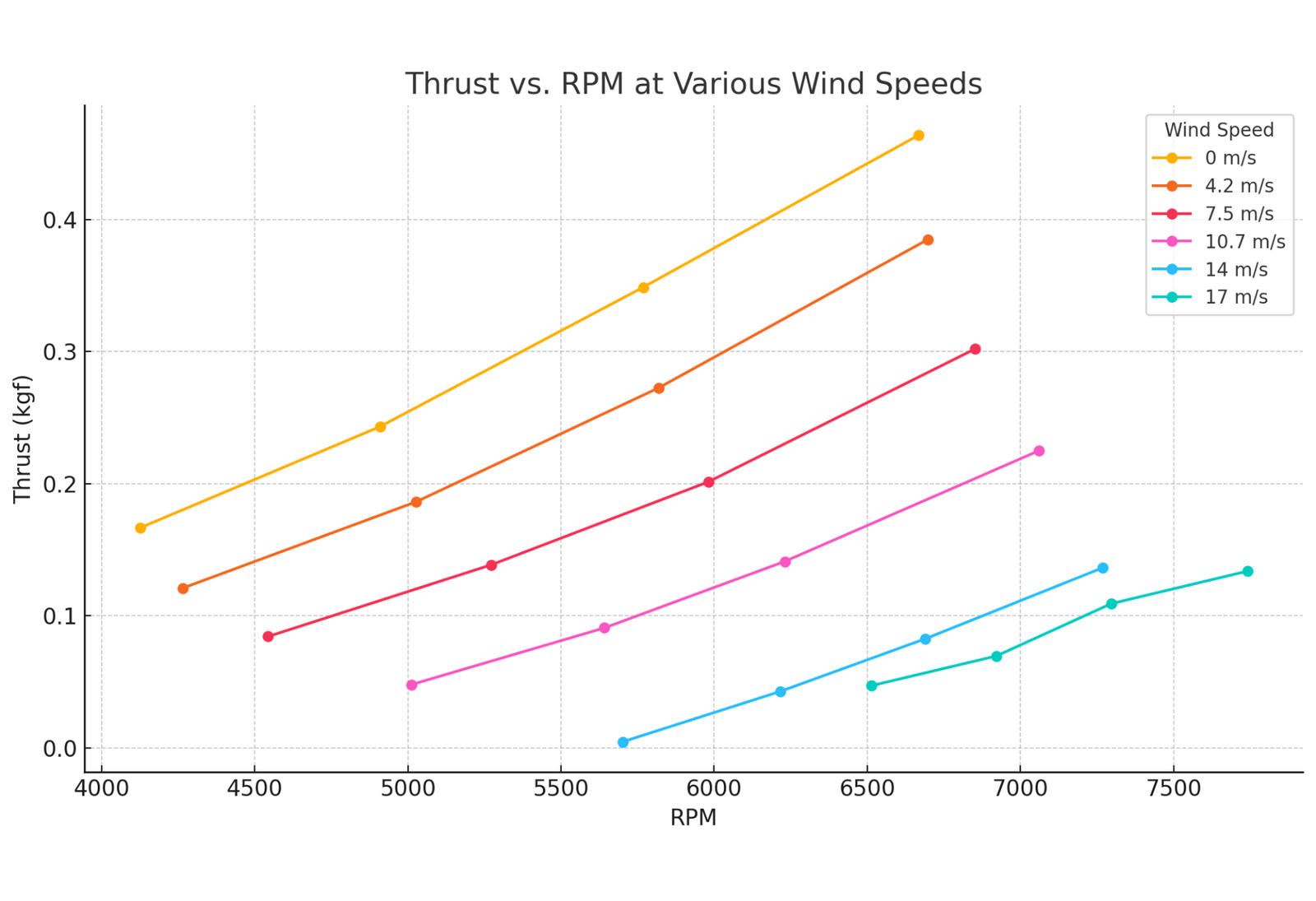

Propeller Efficiency vs. Airspeed

Propeller Efficiency vs. Airspeed

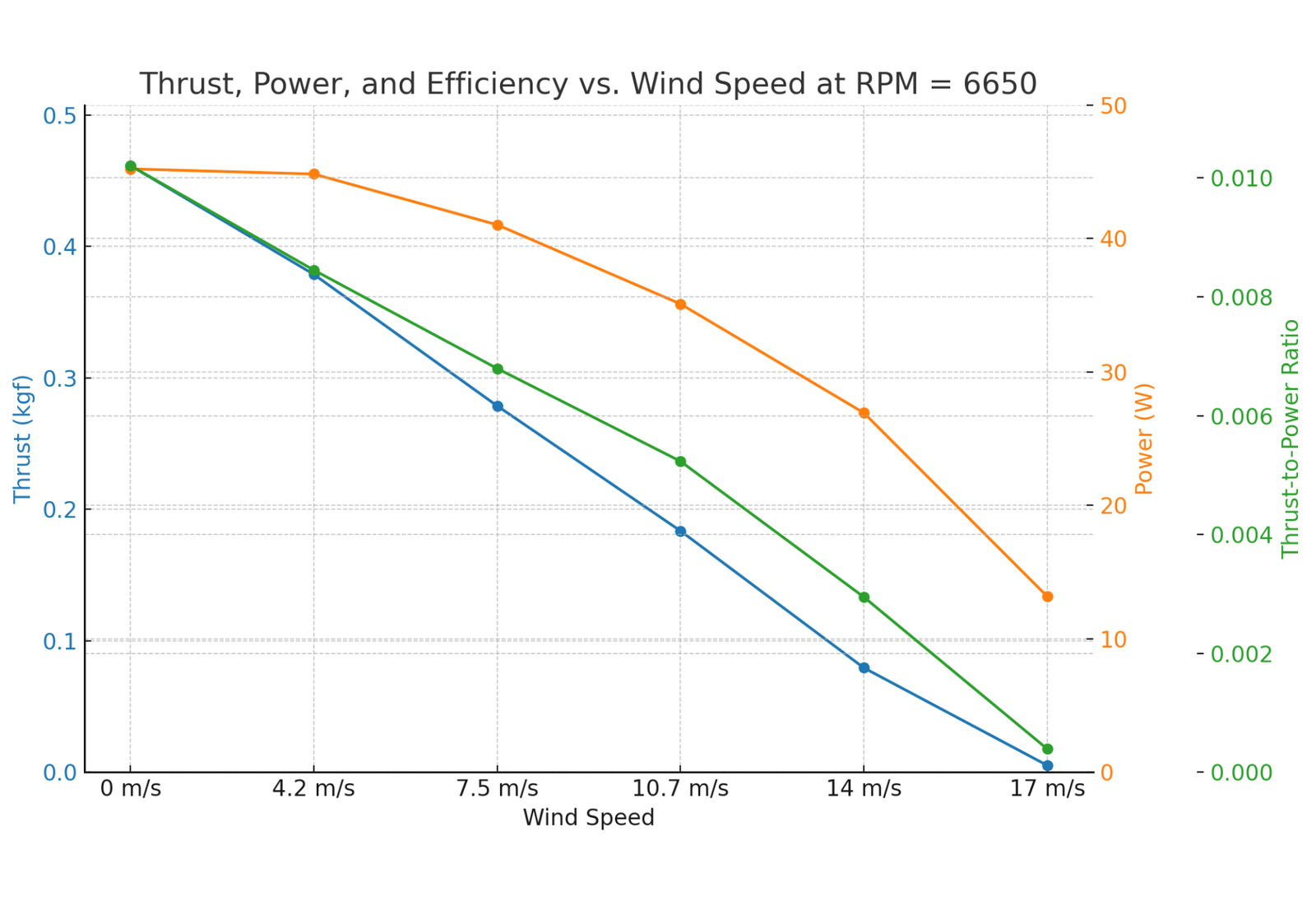

Thrust to Power Ratios

Thrust to Power Ratios

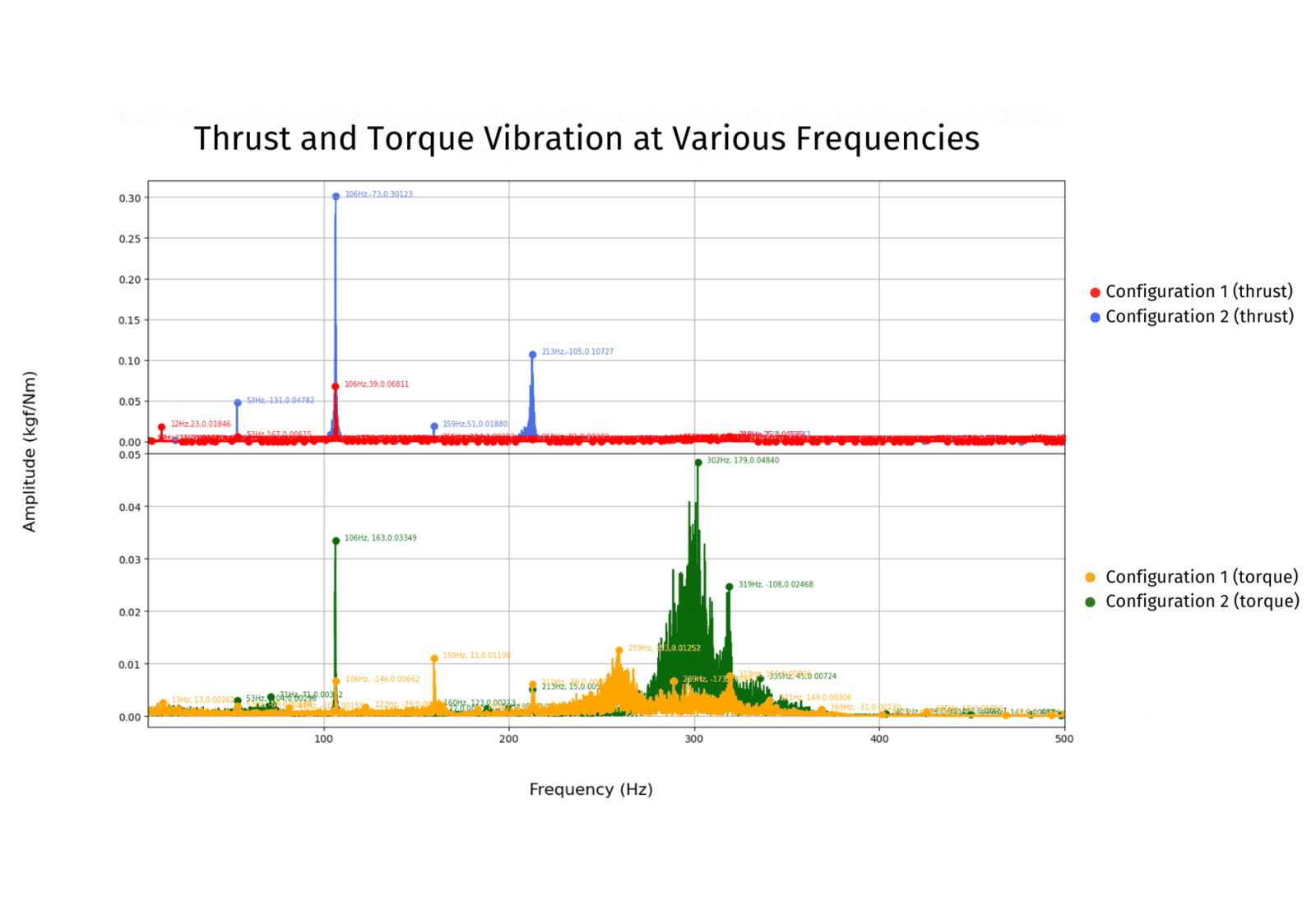

Fast Fourier Transformation

Fast Fourier Transformation

Compare motor-propeller combinations

Compare motor-propeller combinations

Current fluctuation analysis

Current fluctuation analysis

ESC dynamic response analysis

ESC dynamic response analysis

Endurance testing

Endurance testing

Features

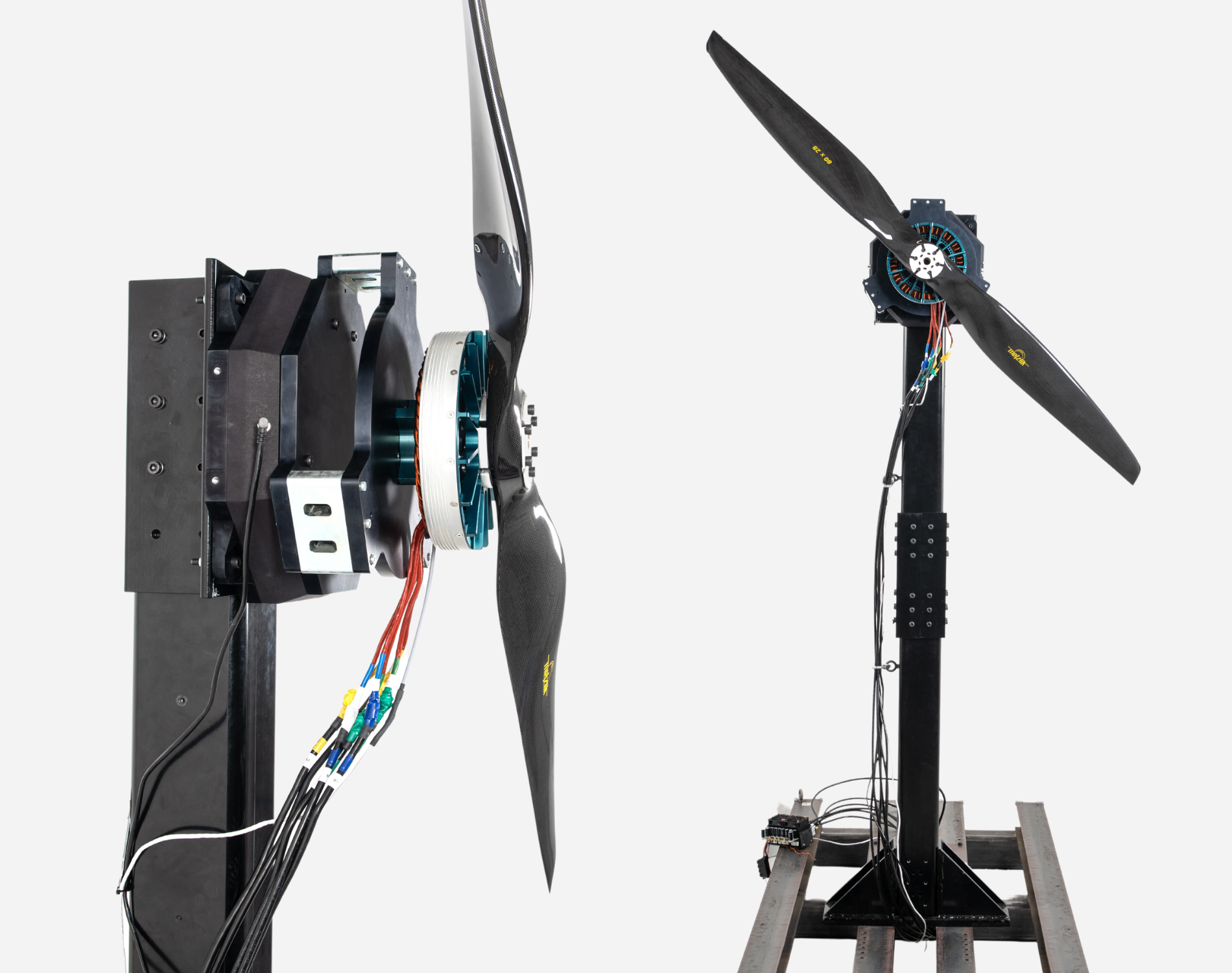

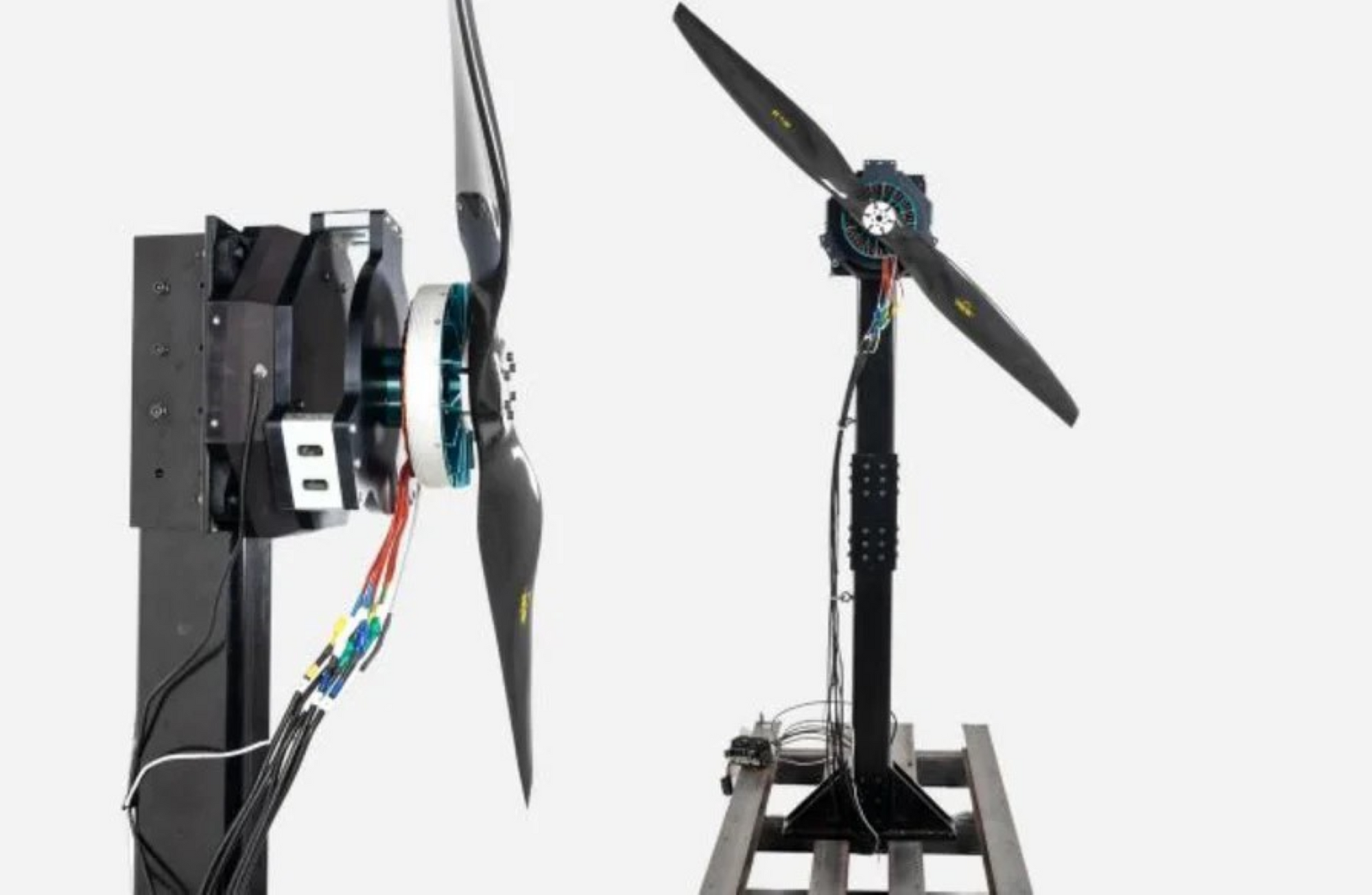

Angled view of the Flight Stand 500 motor and stand

Flight Stand 500

Sampling rate
1,000 Hz
Calibration matrix
>200 points
Analog inputs
Yes
Accuracy
Relative to measured value
Extra sensors
Airspeed sensor

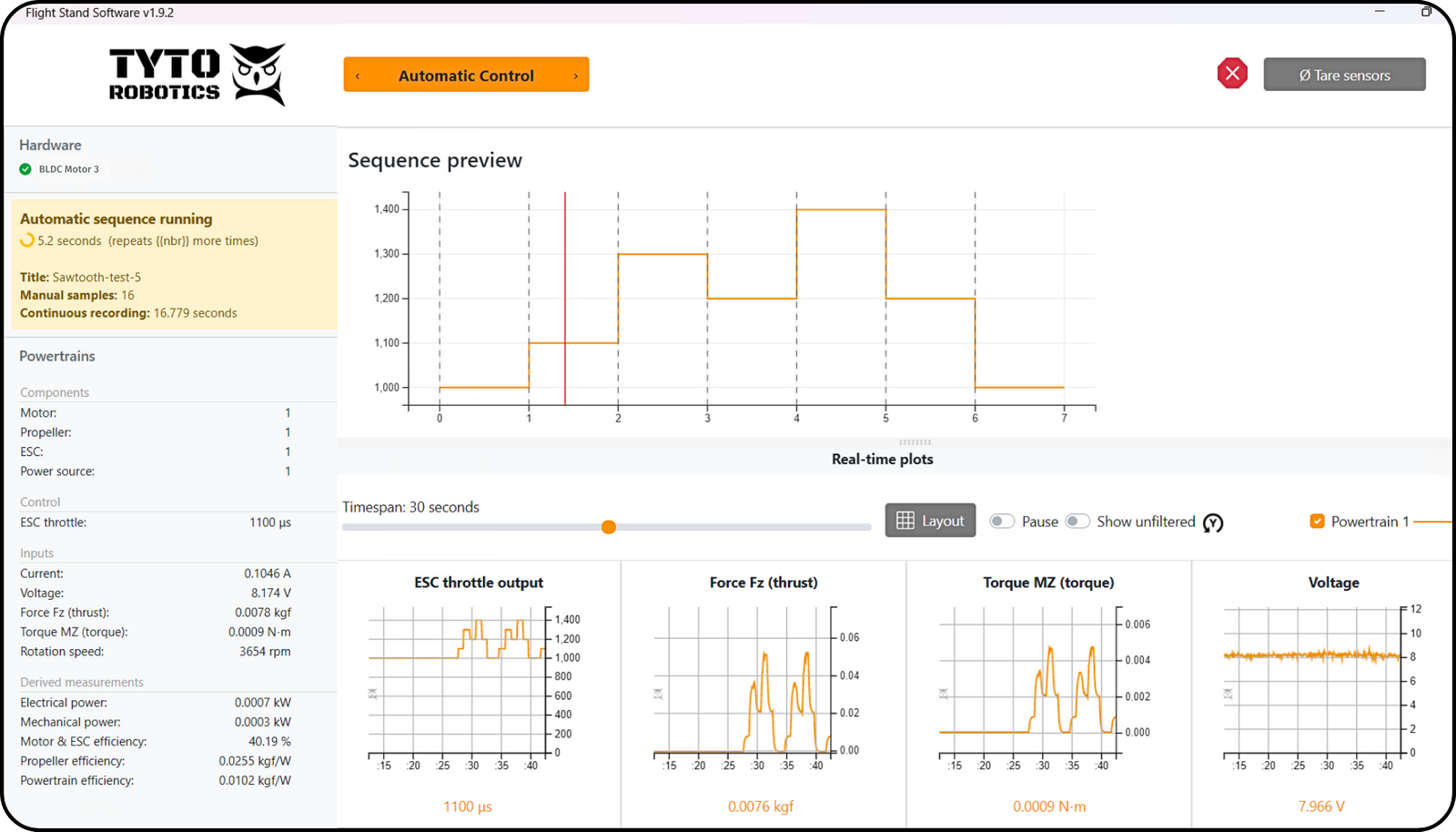

Flight Stand software

Dynamic testing with manual or automatic control

Included with your Flight Stand.

Discover the software

Customer Stories

Discover what customers think

“We discovered your low cost sUAS propeller test stand at AUVSI and I think you guys have done an outstanding job bringing this tool to the community.

Keep up the great work!”

Robert McSwain
Robert McSwain

Aerospace Engineer, NASA Langley Research Center

"We used the Flight Stand 50 to test subscale prototypes of our VTOL model.

We used an in-house wind tunnel setup and the test stand worked beautifully."

Kyle Werner
Kyle Werner

Engineer, BETA Technologies

"Having a reliable ready-to-use-out-of-the-box thrust stand solution was critical to meeting our need to test often and quickly iterate on designs in our development of the toroidal propeller."

Dr. Thomas Sebastian
Dr. Thomas Sebastian

Senior Staff, Structural & Thermal-Fluids Engineering, MIT Lincoln Laboratory

“We put our Flight Stand 150 on a weighted cart that we can roll onto the ramp of our R&D facility.

One of our favorite features of Tyto test equipment is the ability to easily integrate it into larger systems - we use it to test new power systems together with propellers.”

Mark Strauss
Mark Strauss

CEO, WaveAerospace

"The Flight Stand 15 has been fundamental in our efforts at UVIC CfAR to size a motor and propeller for our 21kg hybrid-electric multirotor.

On top of the comprehensive sensor suite accompanying the stand, the ability to automate testing has helped us to ensure that tests can be consistently performed."

Nicholas Castellani
Nicholas Castellani

Mechanical Engineer, UVIC CfAR

"The out of the box capability coupled with the ease of use and powerful software features made the Tyto DEP system a no brainer when we were sourcing a system to test and validate powertrains.

We certainly couldn’t have built this capability from the ground up with the same budget, let alone timeline."

Swinburne University AIR Hub
Brandon Piening

Research Engineer, AIR Hub

The Flight Stand Advantage

Built for better propulsion testing

Frictionless measurement system

Frictionless measurement system

Solid state measurement system with no bearings or hinges.

Crosstalk calibrated load cell

Crosstalk calibrated load cell

Load cell matrix generation inspired by elements of ASTM E74/E2624 standards, adapted for multi-axis measurement.

Aerodynamic design

Aerodynamic design

Compact shape reduces interference and mimics drone design.

Large motor testing

Large motor testing

Test large motors and propellers with up to 500 kgf of thrust and 1,500 Nm of torque.

Best in class software

Best in class software

Easy to use, comprehensive software included with every Flight Stand.

Wireless control

Wireless control

Remotely control the Flight Stand from any computer on your network.

Training course

Build confidence in every test

Flight Stand training course resources

Easy to follow tutorials

Included with your Flight Stand

Master propulsion testing with our free training course, providing guidance every step of the way.

Complete with resources, tutorials, checklists and videos to support your test success.

Learn more

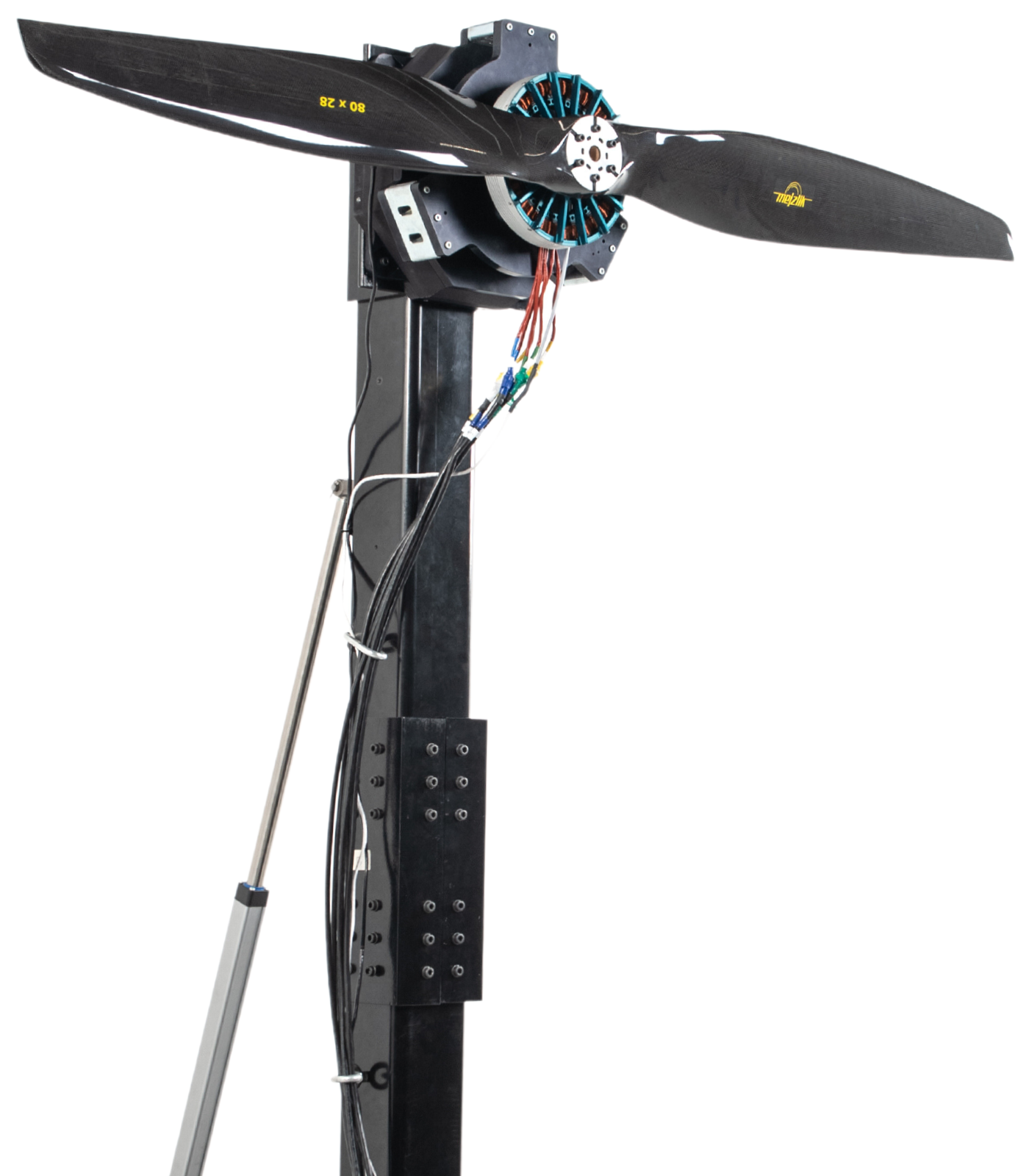

Flight Stand 500 motor and full carbon-fiber propeller with background removed

Precise measurement

The best way to test UAV motors and propellers

Record accurate measurements and gather the data you need to develop a better drone.

Your questions, answered

Flight Stand 500 FAQ

What is the warranty on the Flight Stand 500 thrust stand?

The Flight Stand 500 comes with a 1-year limited warranty. Extended warranty and MRO packages are available upon request. See our complete Terms of Service for full details and conditions.

Do you offer on-site support for installation of the Flight Stand 500?

On-site support is available for the installation of the Flight Stand 500. See this video for a description of your options or contact our sales team for more information.

How is the Flight Stand calibrated?

Tyto Robotics Flight Stands are calibrated using a process inspired by ASTM standards and adapted for UAV propulsion testing. Matrix generation is inspired by elements of ASTM E74 and E2624, using Tyto-developed metrology equipment to apply controlled thrust and torque loads representative of typical UAV test conditions. This includes over 200 loading points across the full measurement range. Calibration is then performed using Tyto’s internal methodology, based on dead weights and precision load cells across representative portions of the measurement range. See the datasheet for full details.

What’s included with the Flight Stand 500 thrust stand?

The Flight Stand 500 kit includes: thrust stand hardware, 1 motor mounting plate, 1 force measurement unit, 1 data acquisition unit, 1 high voltage measurement unit, 1 current measurement unit, 1 fiber optic RPM sensor, 2 thermocouples, 1 airspeed pressure sensor, complimentary software for system control and data acquisition, and a complimentary training course that covers stand setup and propulsion testing theory.

Are motors, propellers, and ESCs included with the Flight Stand?

Motors, propellers and ESCs are not included and must be sourced by the customer.

Which ESC protocols are supported?
  • Standard PWM: 50, 100, 200, 300, 400, 500 Hz
  • DShot: 150, 300, 600
  • OneShot: 42, 125
  • MultiShot
  • CAN-Bus
How do I mount my motor on the Flight Stand?

The Flight Stand 500 kit includes a motor mounting plate that is used to mount your motor on the stand. You must drill holes in the plate according to your motor layout, where screws can pass through the plate and into the holes on your motor. The plate is then mounted on the Flight Stand’s force measurement unit using the standoffs provided.

Can I use the stand in water?

Our thrust stands are not designed for use in water.
