Flight Stand propulsion testing

Thrust stand for large drones and eVTOL

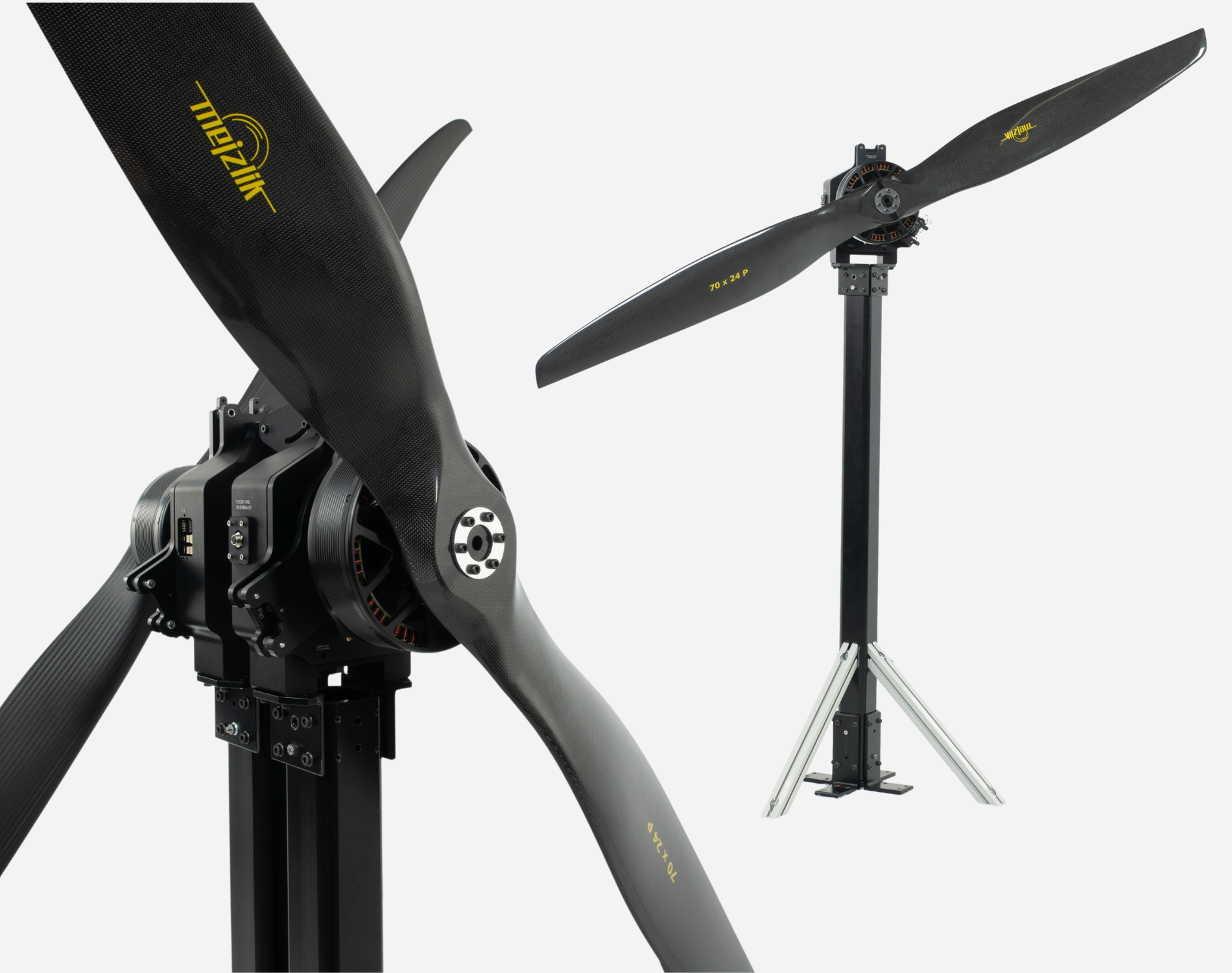

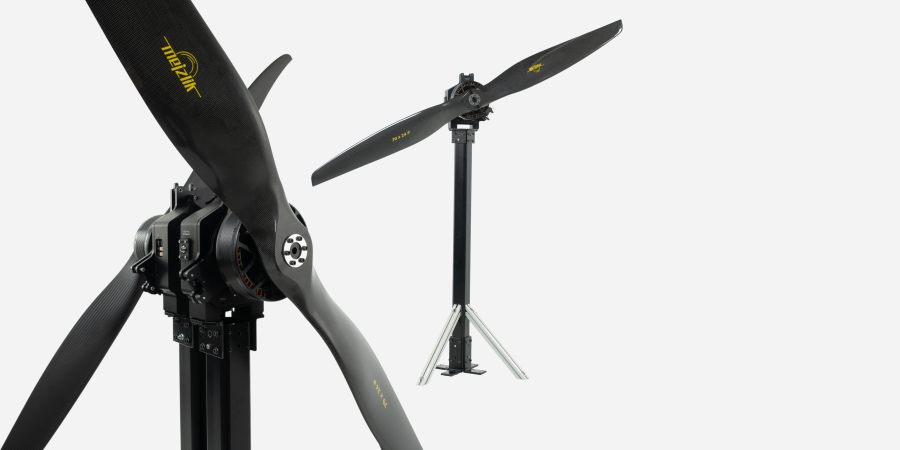

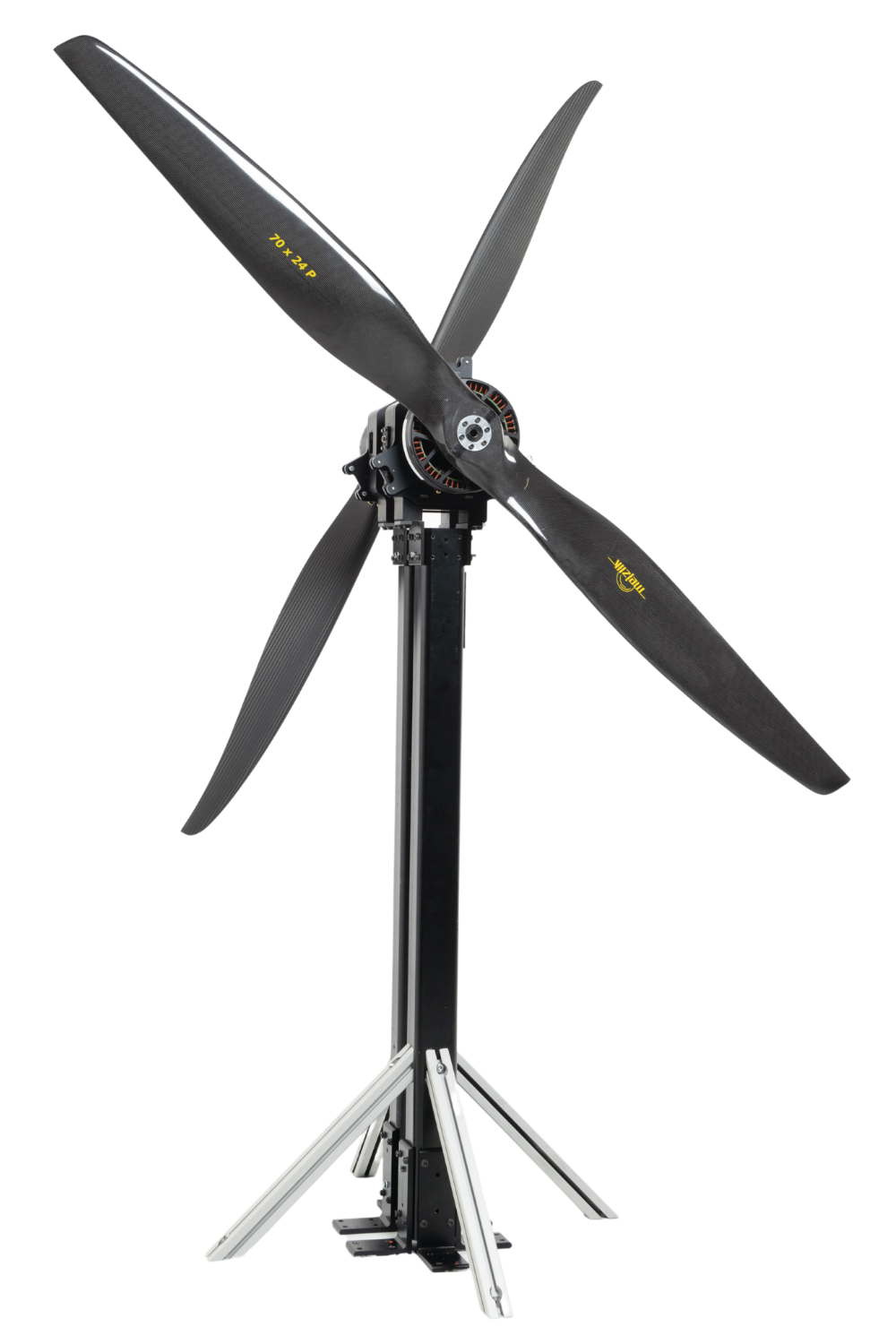

Flight Stand 150

Measure up to 150 kgf of thrust and 150 Nm of torque

Get a quote
Plug and Play

Fast setup and easy-to-use software get you testing right away, helping accelerate development timelines.

1,000 Hz sampling rate

Measure vibration, evaluate ESC responsiveness, and characterize the dynamic response of motors and propellers.

Precise measurement

Load cell matrix generation inspired by elements of ASTM E74/E2624 standards, adapted for multi-axis measurement.

Measure

Technical Specifications

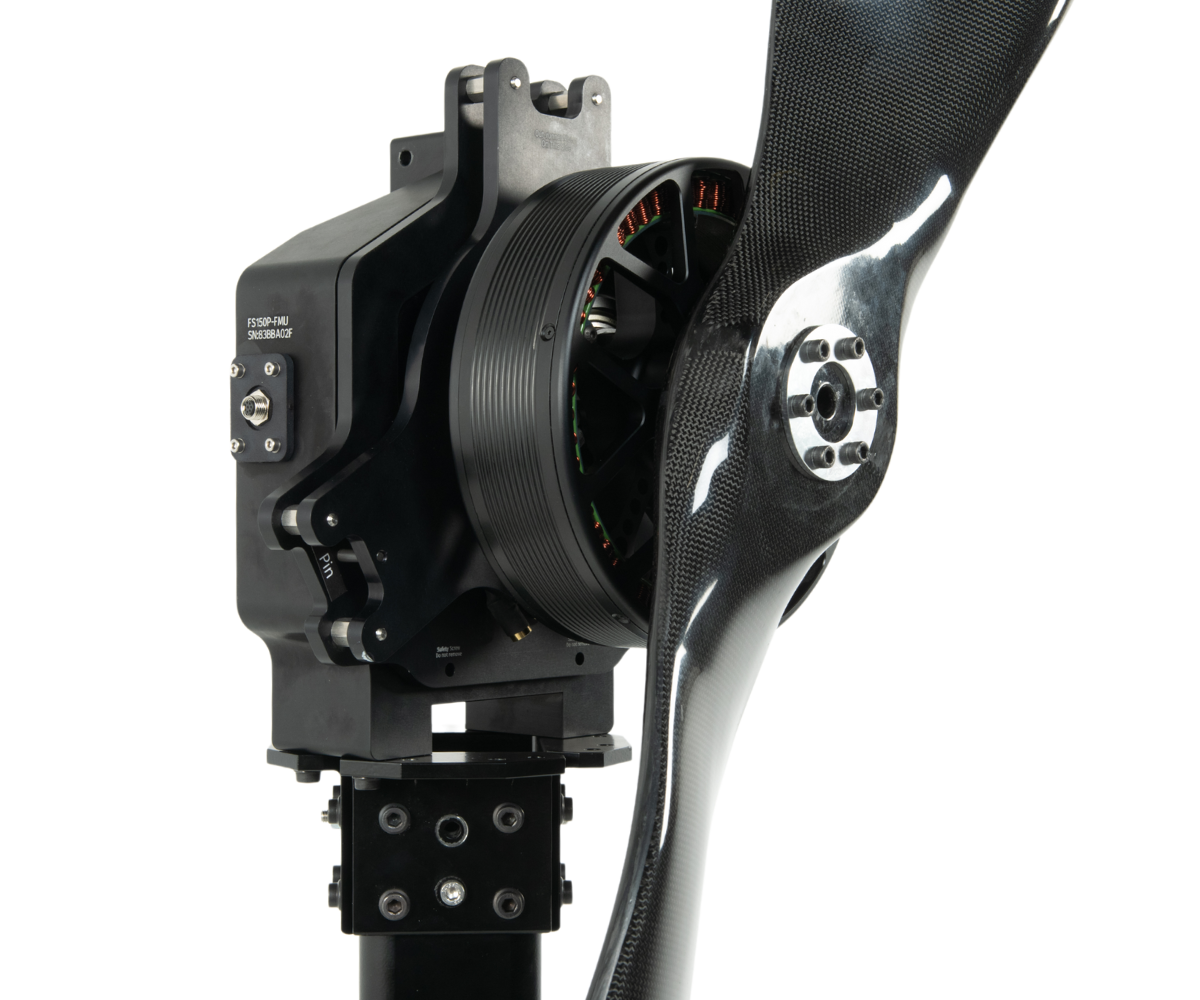

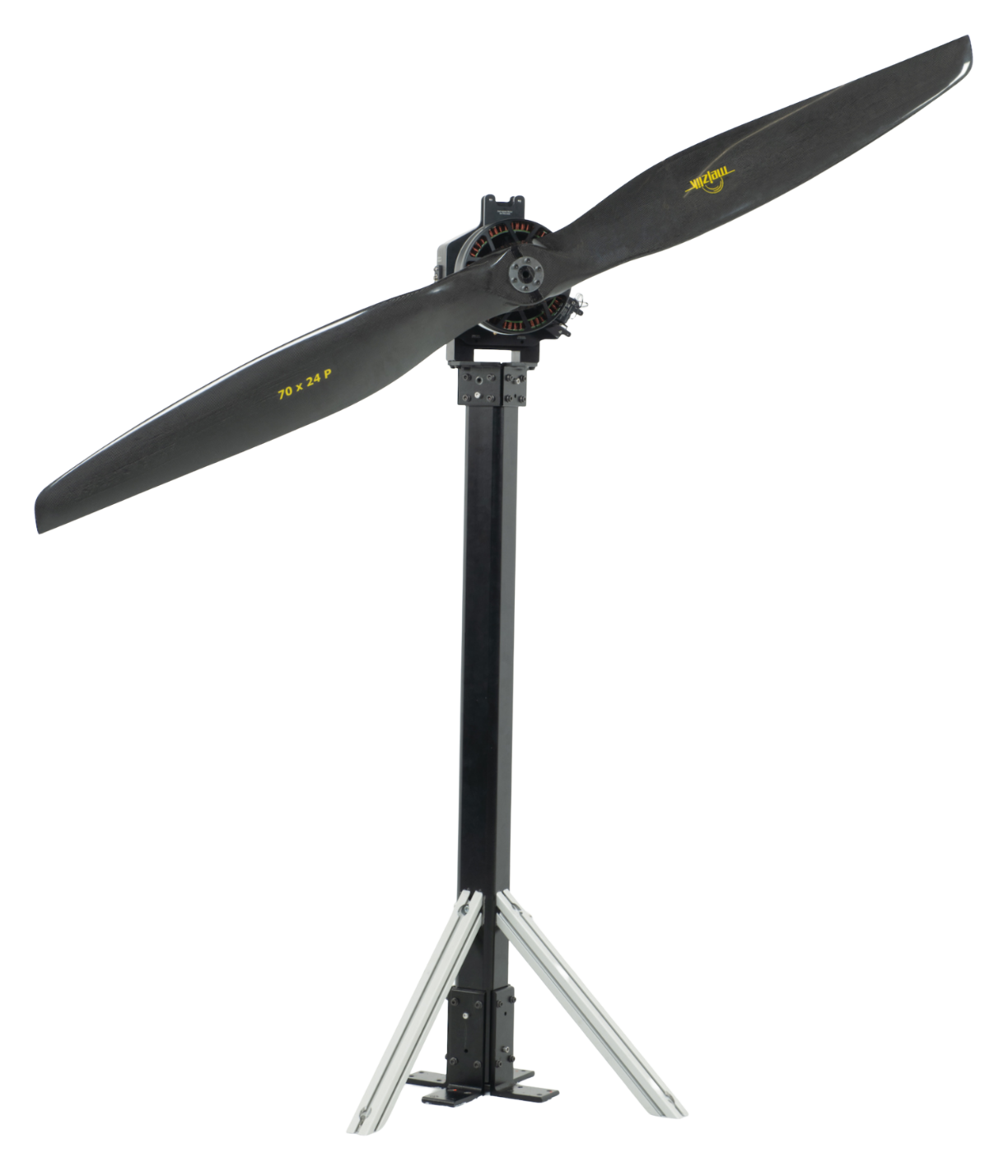

Flight Stand 150 with a rotating propeller and animated specifications

Flight Stand 150

Thrust
up to 150 kgf
Torque
up to 150 Nm
Voltage
up to 1000 V
Current
up to 500 A
Rotation speed
up to 16800 RPM
Download datasheet

Applications

Improve Performance

Motor Performance Mapping

Motor Performance Mapping

Propeller Efficiency vs. Airspeed

Propeller Efficiency vs. Airspeed

Dynamic Propeller Balancing

Dynamic Propeller Balancing

Thrust to Power Ratios

Thrust to Power Ratios

Fast Fourier Transformation

Fast Fourier Transformation

Compare motor-propeller combinations

Compare motor-propeller combinations

Current fluctuation analysis

Current fluctuation analysis

ESC dynamic response analysis

ESC dynamic response analysis

Endurance testing

Endurance testing

Features

Flight Stand 150

Flight Stand 150

Sampling rate
1,000 Hz
Calibration matrix
>200 points
Analog inputs
Yes
Accuracy
Relative to measured value
Extra sensors
Airspeed sensor

Flight Stand software

Dynamic testing with manual or automatic control

Included with your Flight Stand.

Discover the software

Customer Stories

Discover what customers think

“We discovered your low cost sUAS propeller test stand at AUVSI and I think you guys have done an outstanding job bringing this tool to the community.

Keep up the great work!”

Robert McSwain
Robert McSwain

Aerospace Engineer, NASA Langley Research Center

"We used the Flight Stand 50 to test subscale prototypes of our VTOL model.

We used an in-house wind tunnel setup and the test stand worked beautifully."

Kyle Werner
Kyle Werner

Engineer, BETA Technologies

"Having a reliable ready-to-use-out-of-the-box thrust stand solution was critical to meeting our need to test often and quickly iterate on designs in our development of the toroidal propeller."

Dr. Thomas Sebastian
Dr. Thomas Sebastian

Senior Staff, Structural & Thermal-Fluids Engineering, MIT Lincoln Laboratory

“We put our Flight Stand 150 on a weighted cart that we can roll onto the ramp of our R&D facility.

One of our favorite features of Tyto test equipment is the ability to easily integrate it into larger systems - we use it to test new power systems together with propellers.”

Mark Strauss
Mark Strauss

CEO, WaveAerospace

"The Flight Stand 15 has been fundamental in our efforts at UVIC CfAR to size a motor and propeller for our 21kg hybrid-electric multirotor.

On top of the comprehensive sensor suite accompanying the stand, the ability to automate testing has helped us to ensure that tests can be consistently performed."

Nicholas Castellani
Nicholas Castellani

Mechanical Engineer, UVIC CfAR

"The out of the box capability coupled with the ease of use and powerful software features made the Tyto DEP system a no brainer when we were sourcing a system to test and validate powertrains.

We certainly couldn’t have built this capability from the ground up with the same budget, let alone timeline."

Swinburne University AIR Hub
Brandon Piening

Research Engineer, AIR Hub

The Flight Stand Advantage

Built for better propulsion testing

Frictionless measurement system

Frictionless measurement system

Solid state measurement system with no bearings or hinges.

Crosstalk calibrated load cell

Crosstalk calibrated load cell

Load cell matrix generation inspired by elements of ASTM E74/E2624 standards, adapted for multi-axis measurement.

Aerodynamic design

Aerodynamic design

Compact shape reduces interference and mimics drone design.

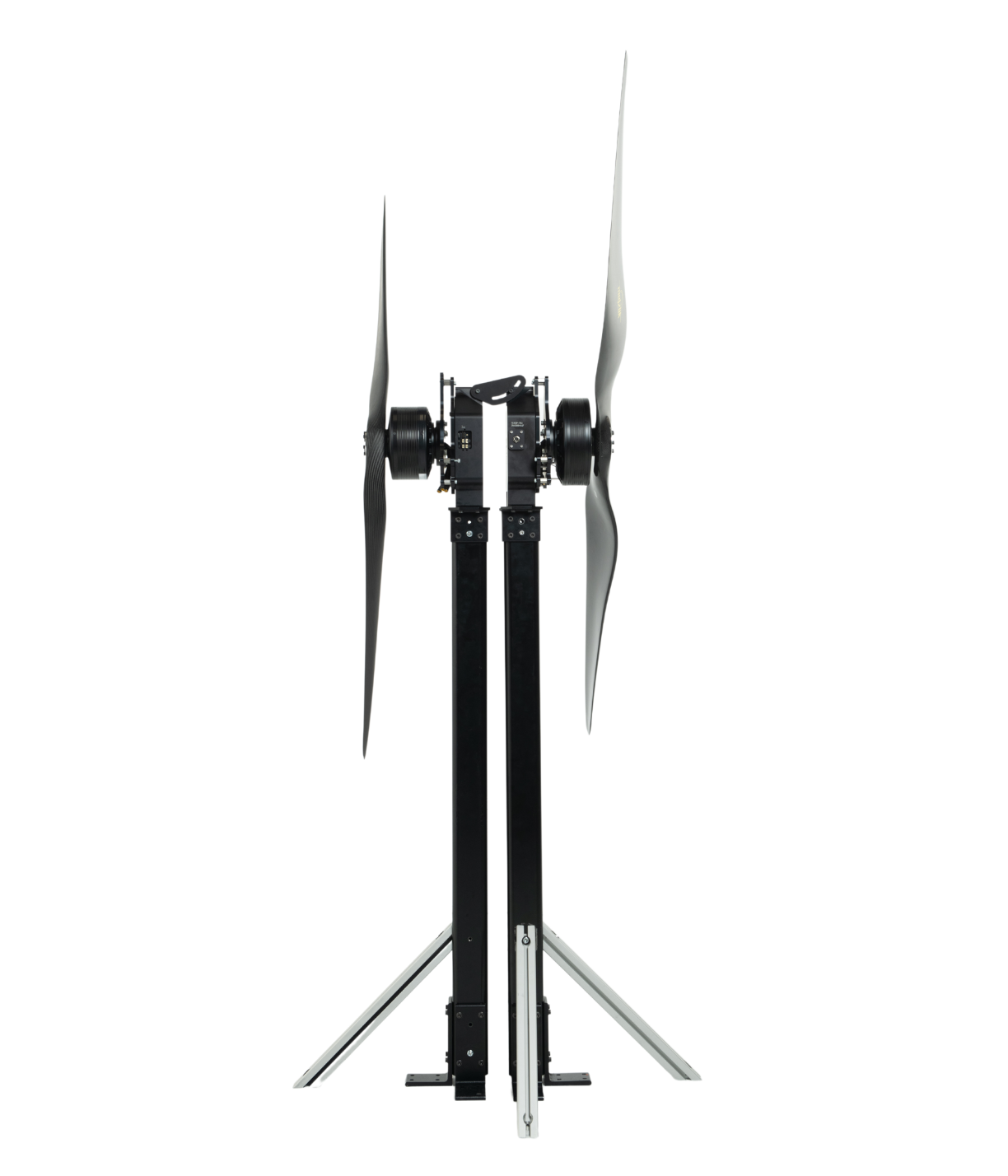

Realistic coaxial testing

Realistic coaxial testing

Test coaxial motor and propeller configurations with supported mounting hardware.

Best in class software

Best in class software

Easy to use, comprehensive software included with every Flight Stand.

Wireless control

Wireless control

Remotely control the Flight Stand from any computer on your network.

Award winning technology

Award winning technology

Winner of the Regional Innovation Award from the Order of Engineers of Quebec.

Excellent customer support

Excellent customer support

Receive answers to your questions in a timely and friendly manner.

Powertrain mapping

Powertrain mapping

Map and test components for up to 8 powertrains.

Training course

Build confidence in every test

Flight Stand training course resources

Easy to follow tutorials

Included with your Flight Stand

Master propulsion testing with our free training course, providing guidance every step of the way.

Complete with resources, tutorials, checklists and videos to support your test success.

Learn more

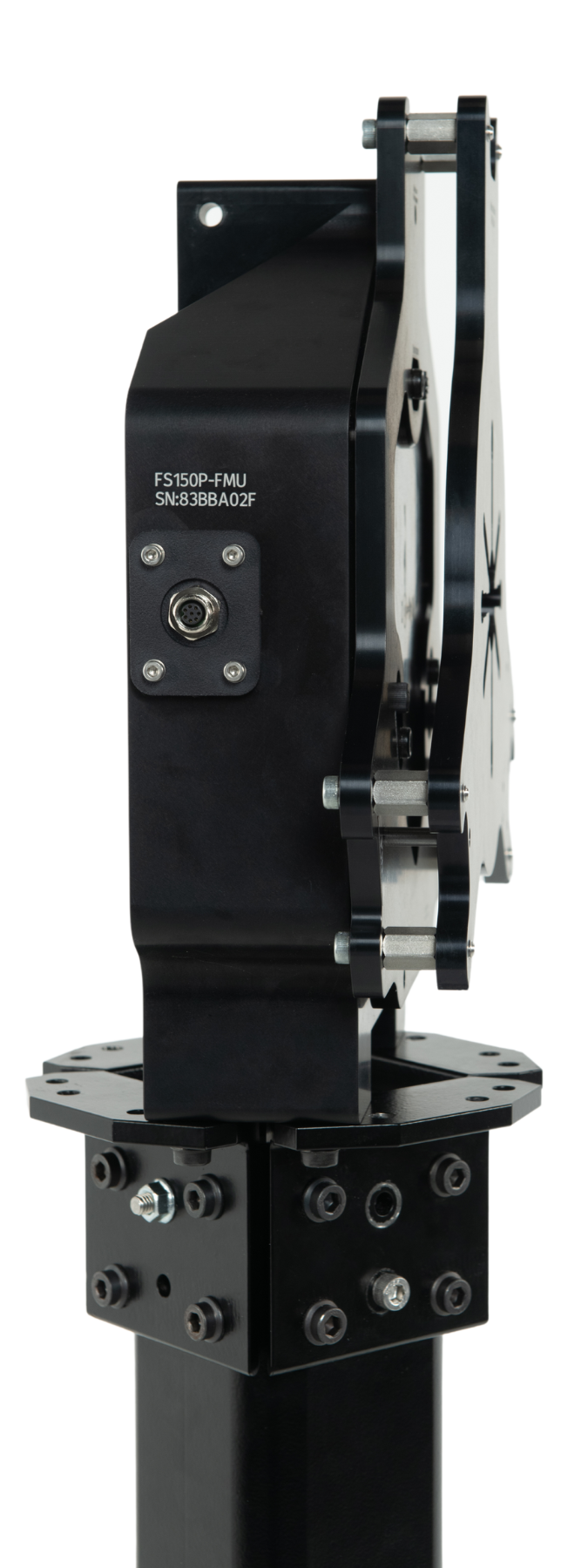

Close-up of Flight Stand 150 mono-block load cell

Precise measurement

Mono-block steady state load cell

For frictionless measurement and low hysteresis.

Your questions, answered

Flight Stand 150 FAQ

What is the warranty on the Flight Stand 150 thrust stand?

The Flight Stand 150 comes with a 1-year limited warranty. Extended warranty and MRO packages are available upon request. See our complete Terms of Service for full details and conditions.

How is the Flight Stand calibrated?

Tyto Robotics Flight Stands are calibrated using a process inspired by ASTM standards and adapted for UAV propulsion testing. Matrix generation is inspired by elements of ASTM E74 and E2624, using Tyto-developed metrology equipment to apply controlled thrust and torque loads representative of typical UAV test conditions. This includes over 200 loading points across the full measurement range. Calibration is then performed using Tyto’s internal methodology, based on dead weights and precision load cells across representative portions of the measurement range. See the datasheet for full details.

What’s included with the Flight Stand 150 thrust stand?

The Flight Stand 150 kit includes: thrust stand hardware, 1 motor mounting plate, 1 force measurement unit, 1 electrical measurement unit, 1 high voltage measurement unit, 1 sync hub, 1 fiber optic RPM sensor, 2 PT-100 temperature sensors, 1 IR temperature sensor, 1 airspeed pressure sensor, complimentary software for system control and data acquisition, and a complimentary training course that covers stand setup and propulsion testing theory. Coaxial Flight Stand 150 kits include an additional sync hub and hardware for securing the force measurement units.

Are motors, propellers, and ESCs included with the Flight Stand?

Motors, propellers and ESCs are not included and must be sourced by the customer.

Which ESC protocols are supported?
  • Standard PWM: 50, 100, 200, 300, 400, 500 Hz
  • DShot: 150, 300, 600
  • OneShot: 42, 125
  • MultiShot
  • CAN-Bus
How do I mount my motor on the Flight Stand?

The Flight Stand 150 kit includes a motor mounting plate that is used to mount your motor on the stand. The plate has pre-drilled slots where screws can pass through the plate and into the holes on your motor. The plate is then mounted on the Flight Stand’s force measurement unit using the standoffs provided.

Can I use the stand in water?

Our thrust stands are not designed for use in water.
