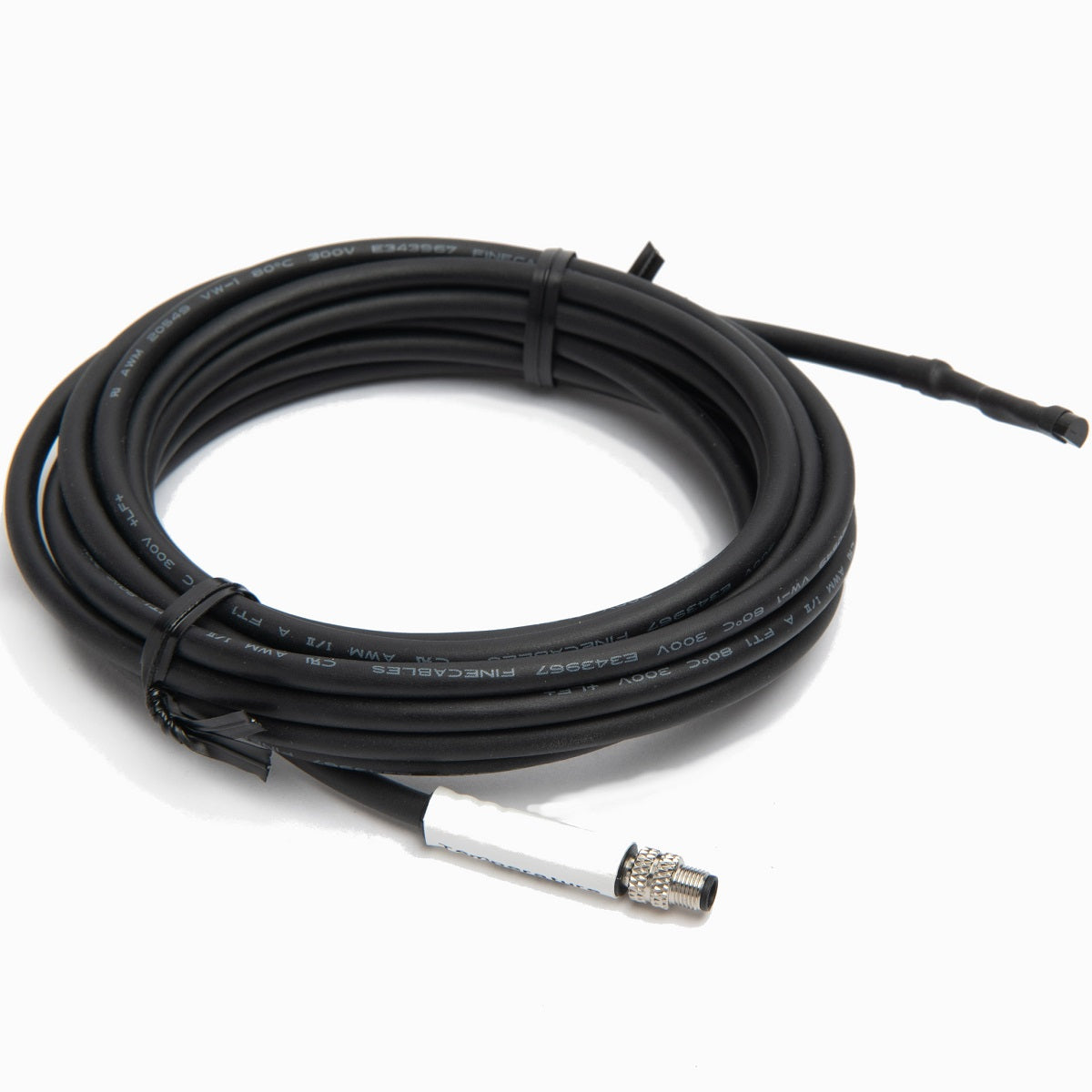

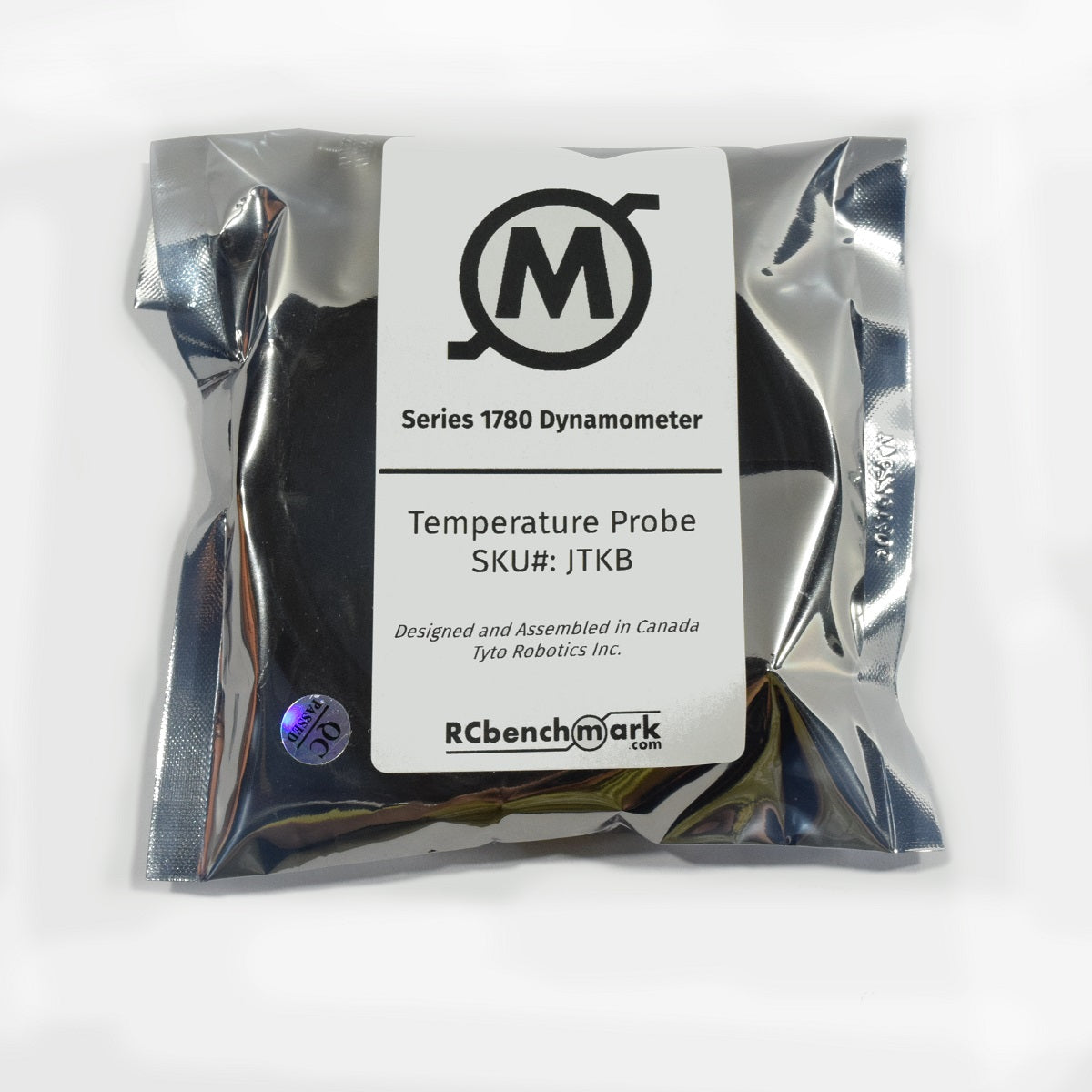

Temperature Probe for Series 1780

$ 88.00 USD

Sku : JTKB

The temperature sensor performs temperature measurements with the Series 1780 thrust stand. You can simultaneously use up to three temperature probes for Series 1780 single-motor configurations, or up to six temperature probes for any Series 1780 coaxial configurations.

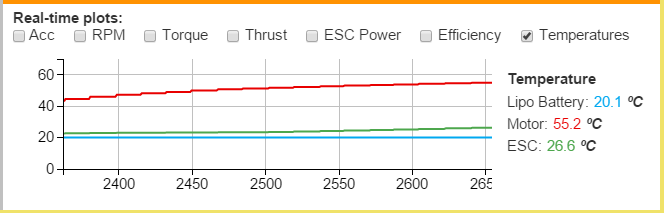

Each probe features a safety cutoff in the software and you can assign safe temperature limits for the various parts of your system. Temperature data is included in the generated log files. You can configure the software to show Celsius, Fahrenheit or Kelvin.

  • Measures temperatures from -10 °C to +120 °C
  • ±0.5 °C accuracy from -10 °C to +85 °C
  • 800 ms update rate
Need a Quote?

Get Quote

Installation instructions

The temperature sensor performs temperature measurements with the Series 1780 thrust stand. You can simultaneously use up to three temperature probes for Series 1780 single-motor configurations, or up to six temperature probes for any Series 1780 coaxial configurations.

Each probe features a safety cutoff in the software and you can assign safe temperature limits for the various parts of your system. Temperature data is included in the generated log files. You can configure the software to show Celsius, Fahrenheit or Kelvin.

  • Measures temperatures from -10 °C to +120 °C
  • ±0.5 °C accuracy from -10 °C to +85 °C
  • 800 ms update rate

Not compatible with the Series 1520/1580 thrust stand.
